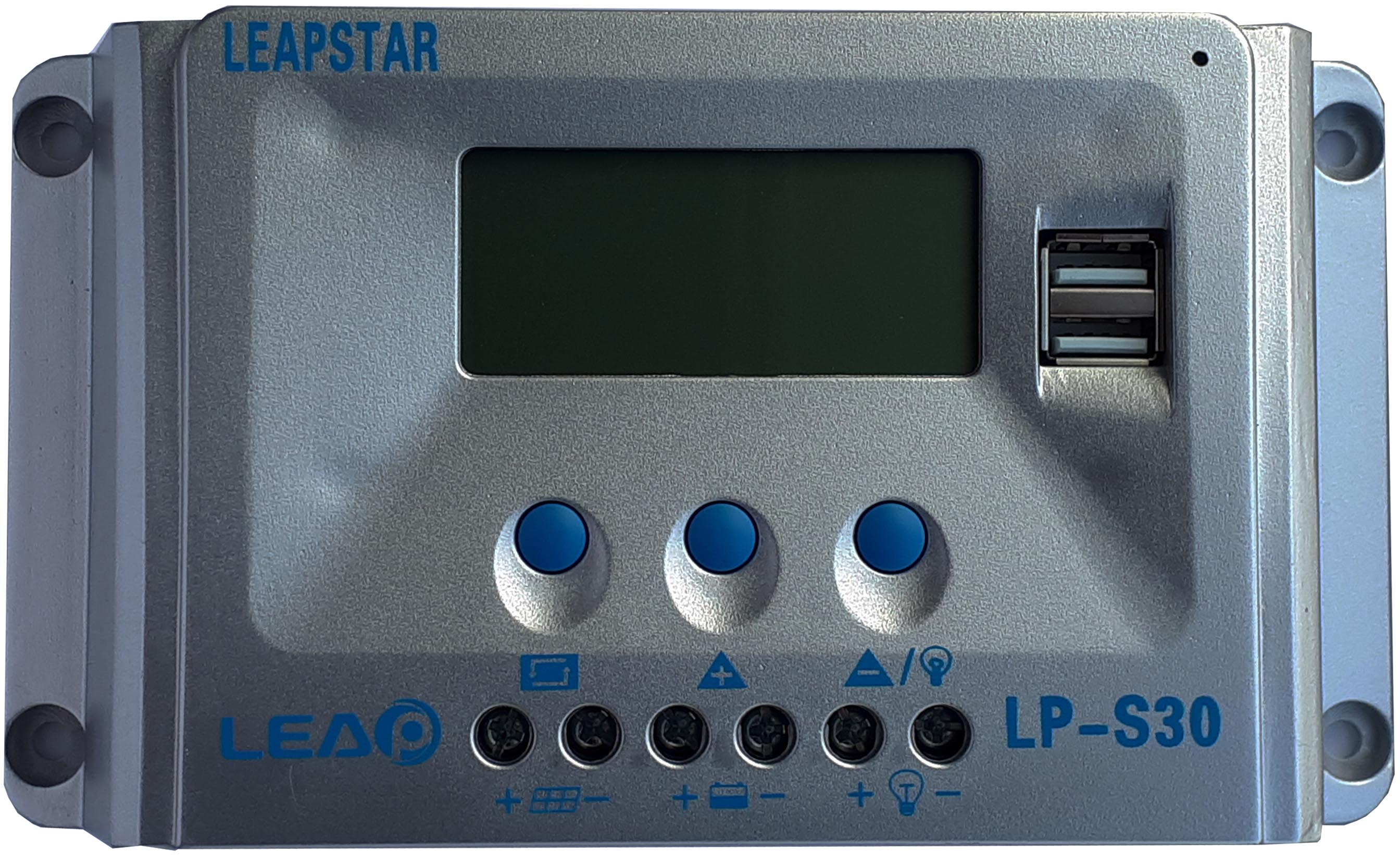

xLeapstar LP-S30 30A Solar Controller: Precision 32-Bit Lithium Management
The Leapstar LP-S30 is a professional-grade 30A PWM solar charge controller designed for modern off-grid energy systems. Powered by an advanced 32-bit microprocessor, the LP-S30 offers superior sampling accuracy and computation speeds compared to standard 8-bit controllers. This ensures your battery bank—whether Lithium (LiFePO4), AGM, or Gel—receives the most stable and efficient charge possible in any weather condition.
A standout feature for mobile users is the integrated High-Output Dual USB Ports (5V/3A), providing enough current to fast-charge modern smartphones and tablets directly from your solar array. With its 12V/24V auto-sensing capability and user-adjustable parameters, the LP-S30 is the ideal heart for RV solar upgrades, marine power systems, and remote off-grid cabins.
Search Summary: Model LP-S30 | 30A Rated Current | 32-Bit Microprocessor | Lithium (LiFePO4) & Lead-Acid Compatible | 5V/3A Dual USB Output | Adjustable LCD Interface | Temp. Compensation | Full Electronic Protection.
Key Advanced Features:
- Intelligent Lithium Support: Specifically designed to handle the unique requirements of Lithium (LiFePO4) batteries. By adjusting the charging parameters, you can ensure a safe, full charge while bypassing the damaging "Equalization" stages used for lead-acid batteries.
- 32-Bit Processing Power: The industrial-grade master chip provides 16-bit AD sampling accuracy for temperature and current, allowing for high-precision real-time data display on the large LCD screen.
- Adjustable Parameter Control: Unlike locked controllers, the LP-S30 allows you to customize float voltages, low-voltage disconnects, and reconnect points to match your specific battery's BMS requirements.
- Flexible Load Timer: Features a light-sensitive load control mode with adjustable timing (0-24 hours), perfect for automating solar-powered streetlights, fans, or security cameras.
- Thermal Resiliency: Integrated temperature sensor provides automatic charging compensation, ensuring the battery is never overstressed in extreme summer heat or Canadian winter cold.
Technical Specifications:
| Model Number | Leapstar LP-S30 |
| Max. Charge/Load Current | 30 Amps |
| System Voltage | 12V / 24V Auto-Detect |
| USB Output Port | Dual USB 5V / 3A (Max) |
| Max. Solar Input (Voc) | ≤ 50V |
| Dimensions | 185mm x 100mm x 45mm |
Installation Tip: To allow the Leapstar LP-S30 to correctly calibrate your system voltage, always connect your battery first. For Lithium (LiFePO4) systems, manually adjust the charging voltage to 14.4V (for 12V systems) to ensure optimal battery health.
