Description

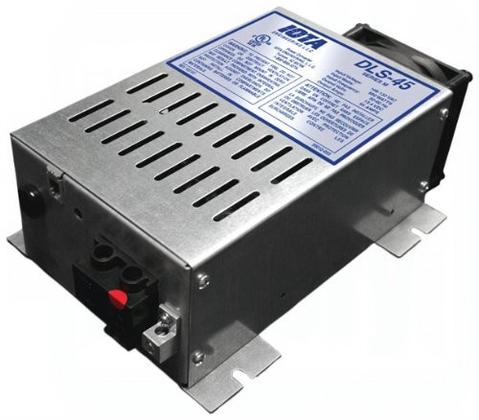

xDLS Series Converters and Chargers for 12 Volts DC
Using state-of-the-art, switch-mode technology, IOTA Power Converter/Battery Chargers are engineered with the user and variable environmental conditions in mind. Extra care has been given to insure many years of service-free operation, even when subjected to extremely harsh conditions. DLS multi-stage chargers ensure that deep cycle batteries are charged quickly and efficiently without over-charging, and pumps, motors, and fans operate perfectly for prolonged life.
| RATINGS AND SPECIFICATIONS | DLS-15 | DLS-30 | DLS-45 | DLS-55 | DLS-75 | DLS-90 |
| DC Output Voltage (No Load) approx. | 13.6V (DC) | 13.6V (DC) | 13.6V (DC) | 13.6V (DC) | 13.6V (DC) | 13.6V (DC) |
| Output Voltage Tolerance (No Load) | + or - .7% | + or - .7% | + or - .7% | + or - .7% | + or - .7% | + or - .7% |
| Output Amperage, Max Continuous | 15 Amps | 30 Amps | 45 Amps | 55 Amps | 75 Amps | 90 Amps |
| Output Voltage (Full Load) approx | >13.4V (DC) | >13.4V (DC) | >13.4V (DC) | >13.4V (DC) | >13.4V (DC) | >13.4V (DC) |
| Maximum Power Output, Continuous | 200 Watts | 400 Watts | 600 Watts | 750 Watts | 1000 Watts | 1200 Watts |
| Ripple and Noise | <50 mV rms | <50 mV rms | <50 mV rms | <50 mV rms | <100 mV rms | <150 mV rms |
| Input Voltage Range | 108 - 132 AC | 108 - 132 AC | 108 - 132 AC | 108 - 132 AC | 108 - 132 AC | 108 - 132 AC |
| Input Voltage Frequency | 47-63 | 47-63 | 47-63 | 47-63 | 47-63 | 47-63 |
| Maximum AC Current (@108Vac) | 3.7 Amps | 7.3 Amps | 11 Amps | 13.4 Amps | 18.2 Amps | 21.8 Amps |
| Typical Efficiency | >80% | >80% | >80% | >80% | >80% | >80% |
| Max Inrush Current, Single Cycle | 30 Amps | 30 Amps | 30 Amps | 30 Amps | 40 Amps | 40 Amps |
| Short Circuit Protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Overload Protection | >100% | >100% | >100% | >100% | >100% | >100% |
| Line Regulation | 100 mV rms | 100 mV rms | 100 mV rms | 100 mV rms | 100 mV rms | 100 mV rms |
| Load Regulation | <1% | <1% | <1.5% | <1.5% | <1.5% | <1.5% |
| Fan Control | PROPORTIONAL | PROPORTIONAL | PROPORTIONAL | PROPORTIONAL | PROPORTIONAL | PROPORTIONAL |
| Thermal Protection | YES | YES | YES | YES | YES | YES |
| Working Temperature Range | 0° - 40° C | 0° - 40° C | 0° - 40° C | 0° - 40° C | 0° - 40° C | 0° - 40° C |
| Storage Temperature | -20° to 80° C | -20° to 80° C | -20° to 80° C | -20° to 80° C | -20° to 80° C | -20° to 80° C |
| Withstand Voltage (VDC) | 1700/1700/500 | 1700/1700/500 | 1700/1700/500 | 1700/1700/500 | 1700/1700/500 | 1700/1700/500 |
| Approximate Dimensions | 9.7" x 6.7" x 3.4" | 9.7" x 6.7" x 3.4" | 9.7" x 6.7" x 3.4" | 9.7" x 6.7" x 3.4" | 13" x 6.5" x 3.4" | 13" x 6.5" x 3.4" |
| Weight | 4.5 lbs | 4.5 lbs | 5.0 lbs | 5.0 lbs | 7.8 lbs | 7.8 lbs |
