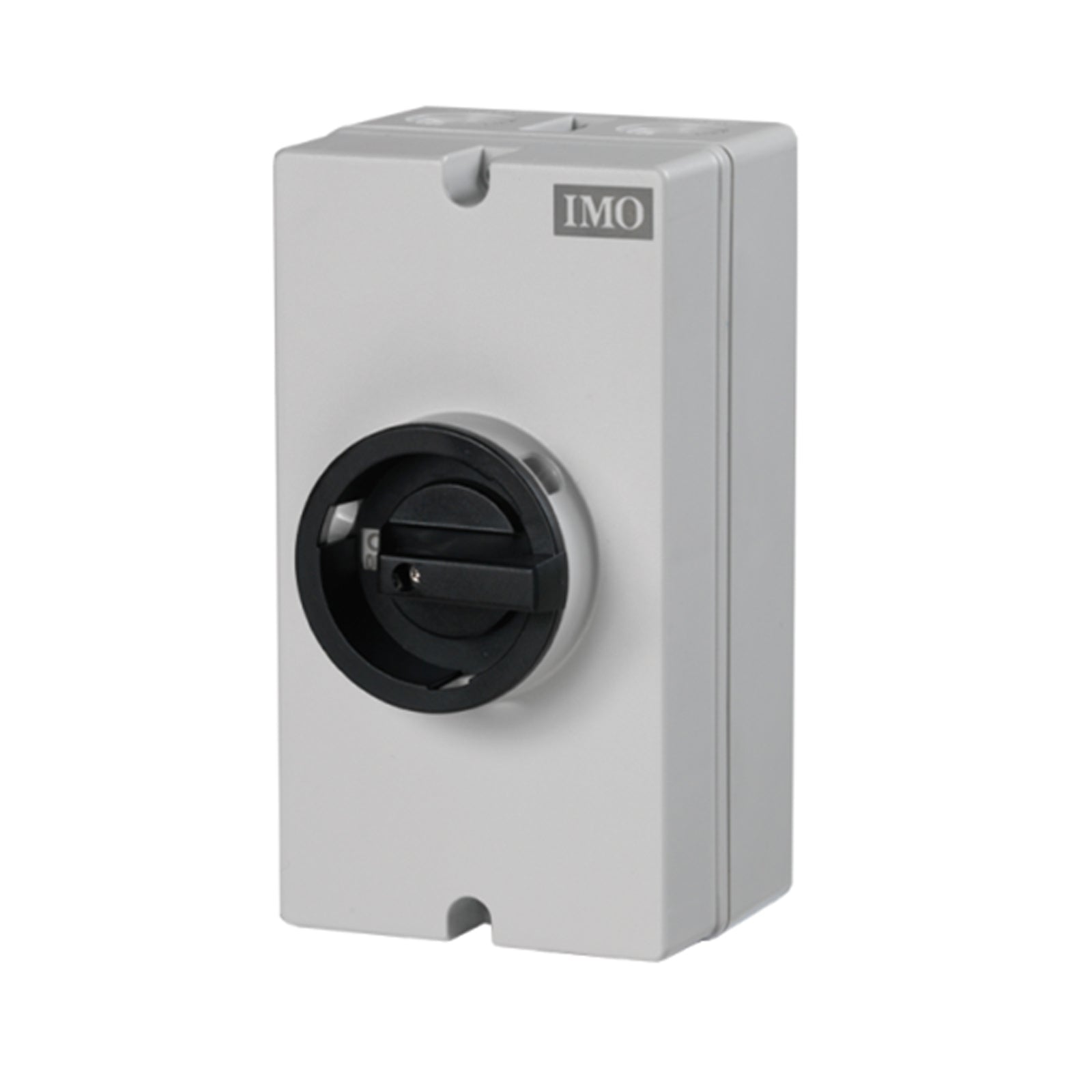

xIMO SI32-PEL64R-6: 3-String Solar PV DC Disconnect Switch (32A)
The IMO SI32-PEL64R-6 is a market-leading True DC Isolator specifically engineered for residential and commercial solar PV installations. Unlike standard AC-derated switches, this 6-pole disconnect is built to handle constant DC loads, providing a safe and rapid break for up to three solar strings.
Advanced Safety & Arc Suppression
Equipped with a high-speed "Snap Action" ratchet mechanism, the IMO SI32 ensures an operator-independent switching speed. This allows for a guaranteed arc suppression of less than 3ms, preventing internal damage and ensuring a long service life for your balance-of-system (BOS) equipment.
Product Features
- NEMA 4X / IP67 Rating: Fully weatherproof and UV-resistant enclosure designed for harsh rooftop environments.
- 6-Pole Configuration: Safely disconnects three positive and three negative wires simultaneously.
- Knife-Edge Contacts: Self-cleaning contacts and built-in arc cooling chambers keep the unit cool under repeated operation.
- Lockable Safety: The rotary handle is lockable in the "OFF" position, meeting professional safety protocols for system maintenance.
- Compact Design: Features pre-scored knockouts and 16mm² box terminals for easy, space-saving wiring.
Technical Specifications
| Manufacturer Part # | SI32-PEL64R-6 |
| Max Rated Current | 32 Amps |
| Voltage Rating | 600V - 1000V DC (DC-PV2 Certified) |
| Number of Strings | 3 Strings (6 Pole) |
| Arc Suppression | < 3ms typical |
| Certifications | UL508i, cULus, CE, TUV, CSA |
