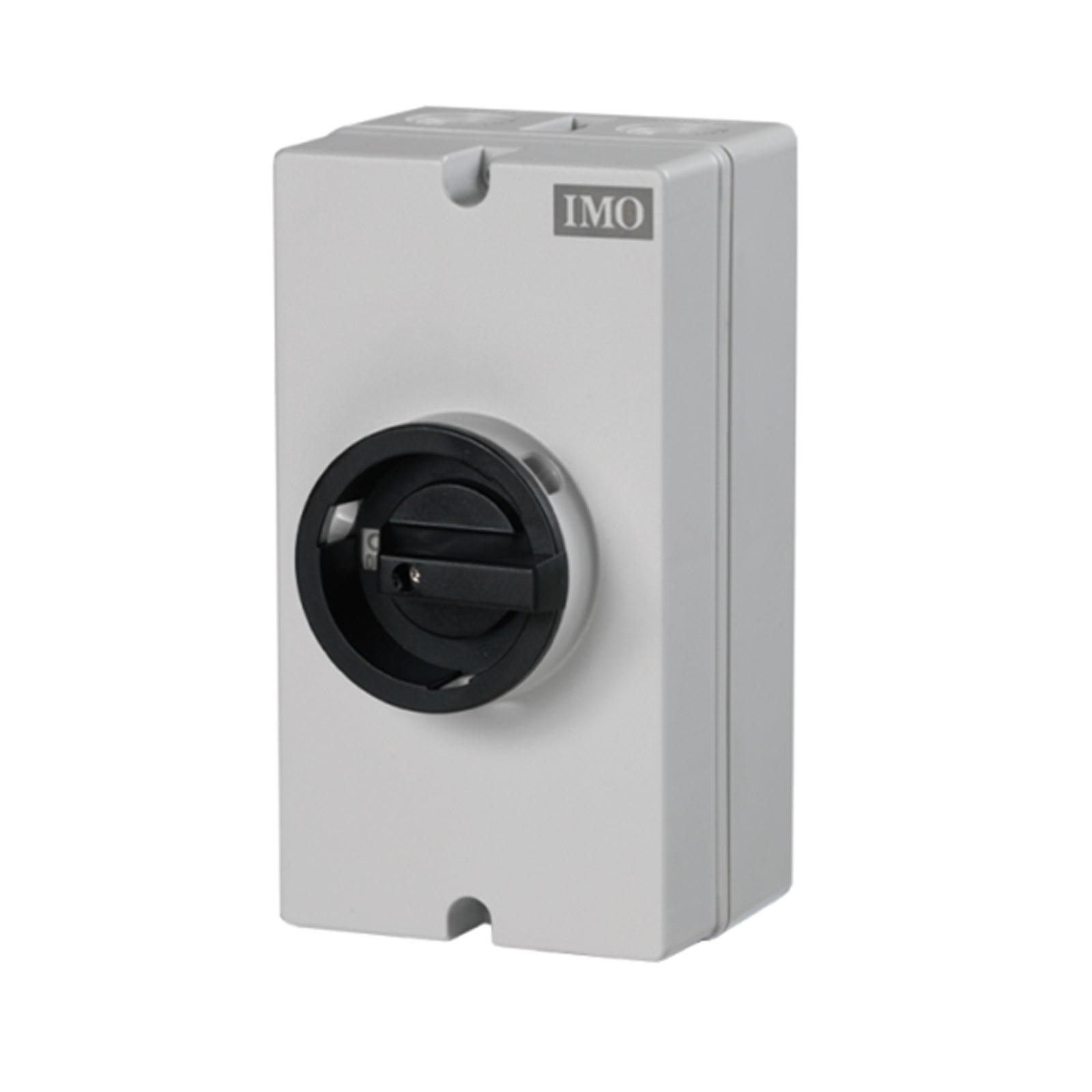

xIMO SI32-PEL64R-2: High-Safety Solar PV DC Disconnect (32A 600VDC)
The IMO PV DC Disconnect 1-String 32A (Model: SI32-PEL64R-2) is the industry benchmark for solar safety. Engineered as a TRUE DC isolator, it provides reliable disconnection between your solar panels and charge controller or inverter. Unlike modified AC isolators, the IMO SI series is designed specifically for high-voltage DC applications, featuring a guaranteed 5ms maximum arc suppression time.
Why Professional Solar Installers Choose IMO SI Series
- Industry-Leading Safety: TRUE DC technology with a full operator-independent switching mechanism.
- Rapid Arc Suppression: Integrated arc chambers ensure a 3ms typical (5ms max) arc suppression time to protect your equipment.
- Extreme Durability: Rated IP66 for weatherproof outdoor performance and equipped with knife-edge contacts for long-life operation.
- Certified Reliability: UL certified for both Canada and the US, meeting the strictest global safety standards.
- Universal Compatibility: Ideal for single-string systems up to 600VDC and 32A.
Technical Specifications
| Model Number | SI32-PEL64R-2 |
| Voltage Rating | 600 VDC |
| Current Rating | 32 Amps |
| String Configuration | 1-String (2 Pole) |
| Environmental Rating | IP66 (Weatherproof) |
| Certifications | UL Certified (US & Canada) |
| Dimensions | 7" x 4" x 4" |
