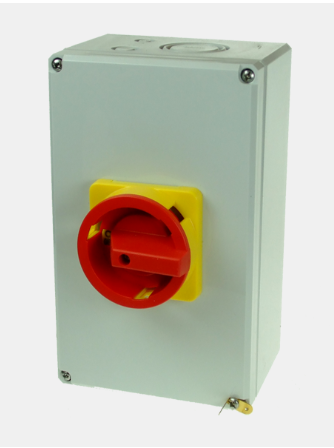

xIMO PE69-3080: 80A 3-Pole AC Disconnect Isolator (IP66 Weatherproof)

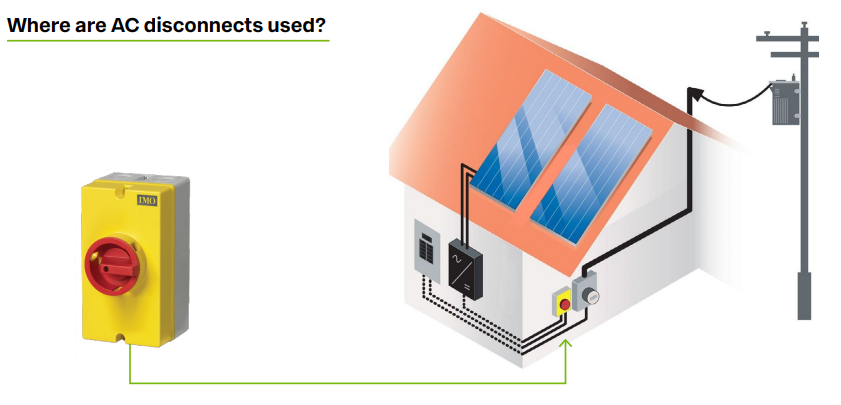

The IMO PE69-3080 is a heavy-duty, 80A 3-pole AC isolator switch designed for safe on-load disconnection of electrical circuits. Housed in a rugged, flame-retardant IP66 / NEMA 4X enclosure, this disconnect is engineered for maximum reliability in residential and commercial solar PV installations, HVAC systems, and industrial motor control.
High-Performance Safety Features
- Robust Capacity: 80A rated current (AC21) suitable for high-power AC circuits.
- Weatherproof Enclosure: IP66/NEMA 4X rating ensures full protection against dust, high-pressure water jets, and harsh Canadian weather.
- Triple Lockable Handle: The high-visibility red/yellow handle is lockable in the 'OFF' position with up to 3 padlocks for LOTO (Lock-Out Tag-Out) compliance.
- Compact Design: Large internal cable space for easier wiring without increasing the overall footprint.
- Certified Quality: UL listed and CSA compliant, ensuring it meets strict safety standards for North American solar and electrical codes.
Technical Specifications
| Manufacturer Part # | PE69-3080 |
| Number of Poles | 3 Pole |
| Current Rating | 80 Amps |
| Voltage Rating | 600VAC / 690V |
| Enclosure Rating | IP66 / NEMA 4X |
| Material | Flame Retardant Polycarbonate |
| Operating Temp | -25°C to +40°C |
