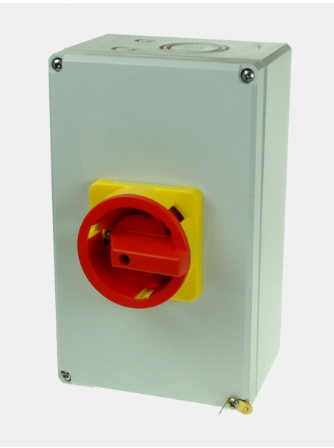

xIMO PE69-3063: 63A 3-Pole AC Disconnect Isolator (IP66 Weatherproof)
The IMO PE69-3063 is a heavy-duty 63A AC isolator switch designed for safe on-load switching in residential, commercial, and industrial solar PV systems. Housed in a rugged, flame-retardant IP66 / NEMA 4X enclosure, this 3-pole disconnect is engineered to withstand the harshest Canadian weather conditions, making it the ideal choice for outdoor inverter and AC combiner box isolation.
Certified Safety
UL listed and CSA compliant. High-visibility red/yellow handle is lockable in the OFF position with up to 3 padlocks for LOTO compliance.
Superior Protection
Rated IP66 and NEMA 4X. Fully dust-tight and protected against high-pressure water jets and snow accumulation.
Key Features & Applications
- High Amperage Capacity: 63A rated current (AC21) @ 400V-600V for high-power solar strings.
- Versatile Mounting: Enclosed thermoplastic housing suitable for wall-mount installations.
- Knife-Edge Contacts: Ensures long-life reliability and consistent electrical connection under load.
- Solar & Industrial Use: Perfect for solar inverters, HVAC systems, motor isolation, and battery backup disconnects.
Technical Specifications
| Manufacturer Part Number | PE69-3063 |
| Number of Poles | 3 Pole |
| Amperage Rating | 63A |
| Voltage Rating | 600VAC (UL/CSA) / 690V (Ui) |
| IP/NEMA Rating | IP66 / NEMA 4X |
| Wire Size Range | 1 - 25 mm² (16-3 AWG) |
| Dimensions | 5.5" x 7.87" x 3.5" (140 x 200 x 86mm) |
