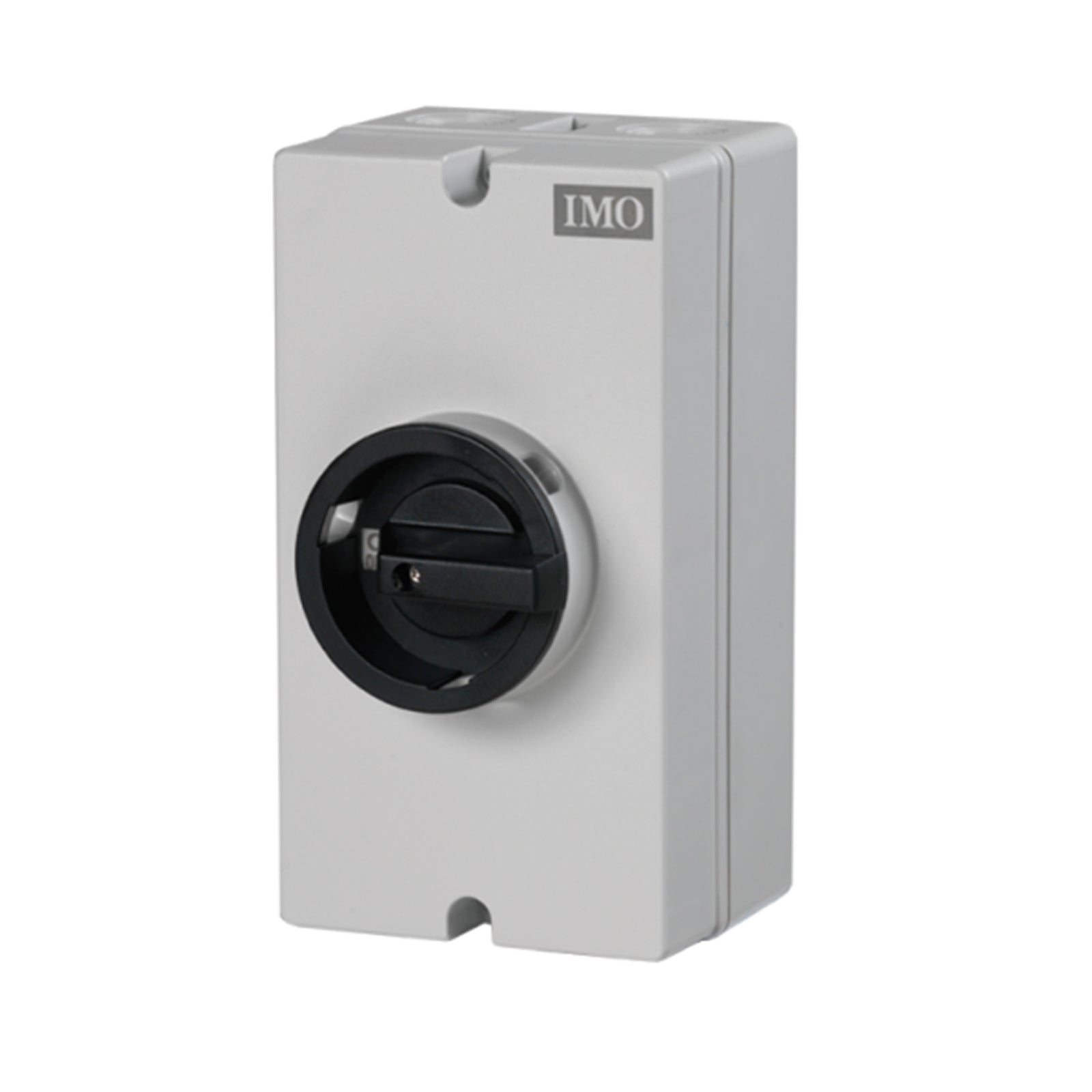

xIMO SI32-PEL64R-4: 32A 2-String True DC Solar Disconnect (NEMA 4X / IP67)
The IMO SI32-PEL64R-4 is the gold standard for safety in multi-string solar PV systems. This 4-Pole, 2-String DC Isolator is specifically engineered to handle DC loads up to 32A at 700VDC. Unlike modified AC disconnects, the SI series features a dedicated DC design that extinguishes arcs in under 5ms, ensuring maximum protection for your inverter and solar array.
Why Installers Prefer the IMO SI Series
- True DC Engineering: Designed specifically for solar applications; operator-independent switching mechanism ensures rapid arc suppression (3ms typical).
- Maximum Weather Resistance: Rated NEMA 4X and IP67. This enclosed switch is completely dust-tight and waterproof, capable of withstanding heavy snow, rain, and UV exposure.

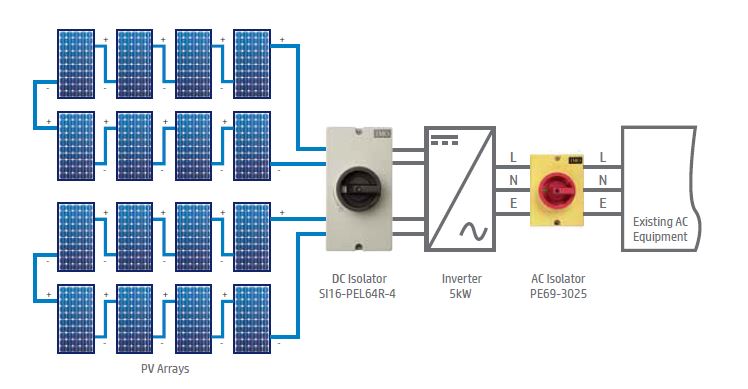

- Multi-String Safety: 4-pole configuration allows for the simultaneous isolation of two separate PV strings.
- Compliance & Certification: Fully UL listed (UL508i), cULus, TUV, CE, and RCM certified for use in Canada and the USA.
- LOTO Ready: High-visibility lockable rotary handle supports standard Lock-Out Tag-Out safety procedures.
Product Specifications
| Manufacturer Part # | SI32-PEL64R-4 |
| Configuration | 4 Pole / 2 String |
| Rated Current | 32A |
| Max Voltage (UL) | 700 VDC |
| Environmental Rating | NEMA 4X / IP67 |
| Temperature Range | -40°C to +45°C |
| Cable Compatibility | 12-10 AWG (4-16mm²) |
