Description

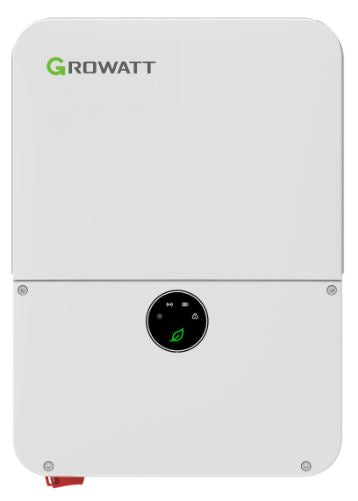

xBridge the gap between high-yield generation and complete home energy resilience with the Growatt 9.0 kW Hybrid Inverter (MIN 9000TL-XH-US). Engineered to effortlessly handle larger residential utility loads, this single-phase hybrid solution acts as a premium grid-tied anchor while remaining natively battery-ready. Whether you deploy dedicated energy storage today or scale your microgrid down the road, the MIN-XH series connects seamlessly with backup storage to protect your property during blackouts. ☀️
Key Features & Benefits
- 4 Independent MPP Trackers: Outfitted with 4 independent MPPT inputs, offering unparalleled installation flexibility to maximize solar collection across complex, multi-angled, or partially shaded roof surfaces. 📐
- Massive 2.0 DC/AC Ratio: Accommodates a maximum recommended PV input power of up to 18,000 Watts (18.0 kW). This allows you to heavily oversize your solar array to optimize power delivery during winter or overcast conditions. 🔌
- Versatile Energy Operations: Natively supports advanced management configurations including self-consumption, Time-of-Use (ToU) peak utility management, Zero-Export parameters, and isolated off-grid backup profiles. 📈
- Whole-Home Backup & Dark Start: Integrates directly with a Growatt Automatic Transfer Switch (ATS) to provide automatic home power backup. Features a native "dark start" architecture to reboot your household microgrid natively from solar or storage after a total grid failure. 🛡️
- Code-Compliant Built-In Protection: Features integrated Arc-Fault Circuit Interruption (AFCI) and Rapid Shutdown (RSD) support to ensure your array complies fully with modern residential safety standards. 🔒
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Growatt New Energy |
| Model Number | MIN 9000TL-XH-US |
| Nominal AC Output Power | 9,000 W (9.0 kW) @ 240V AC |
| Max. Recommended PV Input Power | 18,000 W (18.0 kW) |
| Max. DC System Voltage | 600 V |
| Number of MPP Trackers | 4 MPPT Trackers |
| MPPT Operating Voltage Window | 50 V – 550 V (Startup at 50 V) |
| Max. Output Current | 38 A |
| Peak Efficiency | 98.5% (CEC Efficiency 97.5%) |
| Environmental Protection Degree | NEMA 4X (IP65 Equivalent) / Natural Convection Cooling |
| Dimensions & Unit Weight | 15.8" x 25.2" x 7.4" (400 x 638 x 187 mm) | 45.2 lbs (20.5 kg) |
| Compliance & Certifications | UL1741SA/SB, UL1699B, UL9540, CA Rule 21, HECO Compliant |
Product Documentation
Review full structural layout designs, thermal performance specs, and wiring installation guidelines directly from the official manufacturer documentation:
📥 Download Growatt MIN-XH (8.2kW–11.4kW) Inverter Datasheet (PDF)
