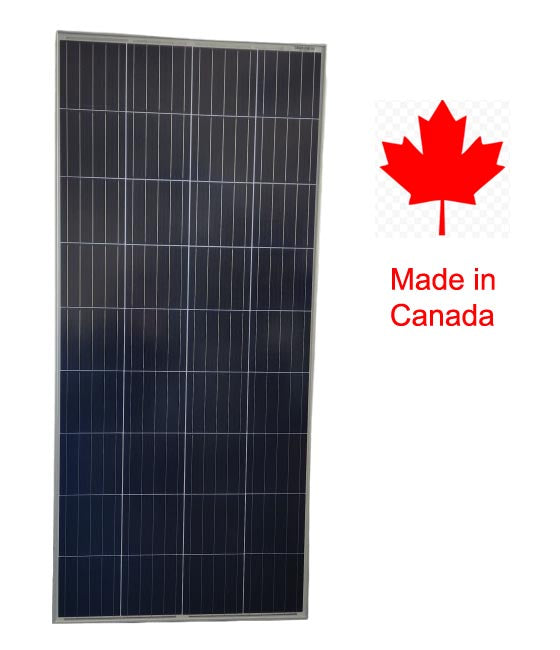

xGMA 190W Mono Solar Panel: Premium Canadian-Made Performance
Proudly Made in Canada, the GMA GMAM6-36-190W is a high-output, mono-crystalline solar module designed for maximum efficiency in off-grid and mobile applications. This CSA Certified panel delivers superior performance in northern climates, making it the ideal choice for RVs, marine vessels, and remote cabin power systems.
Engineered for High-Efficiency & Safety
- Advanced Mono-Crystalline Cells: Features 36 high-efficiency cells (156.75 x 156.75 mm) providing a module efficiency of 17.14%.
- Certified Quality: Proudly manufactured in Montreal and tested to UL 1703 standards for reliable safety and performance.
- Extreme Weather Resilience: Built to handle heavy Canadian winters with a snow load rating of 5400 Pa and wind resistance of 2400 Pa.
- Industrial Grade Construction: Features 3.2mm high-transmission tempered glass and a 35mm anodized aluminum frame for long-term structural integrity.
- Superior Connectivity: Pre-wired with 1000mm of UV-protected 10 AWG PV cable and IP68 rated MC4 connectors for easy installation.
Electrical Specifications (@ STC)
| Peak Power (Pmax) | 190W (+3% Tolerance) |
| Maximum Power Voltage (Vmp) | 20.4V |
| Maximum Power Current (Imp) | 9.45A |
| Open-Circuit Voltage (Voc) | 24.0V |
| Short-Circuit Current (Isc) | 9.45A |
| Max System Voltage | 600V DC |
Mechanical Data
| Dimensions | 1480 x 670 x 35 mm (58.25"x26.4"x1.38") |
| Weight | 13 kg (28.6 lbs) |
| Junction Box | IP65 with 2 Bypass Diodes |
| Fire Rating | Type 2 Rated |
25-Year Performance Warranty
GMA Solar provides a 25-year power output warranty (guaranteeing 90% at 10 years and 85% at 25 years) alongside a 10-year product warranty on materials.
