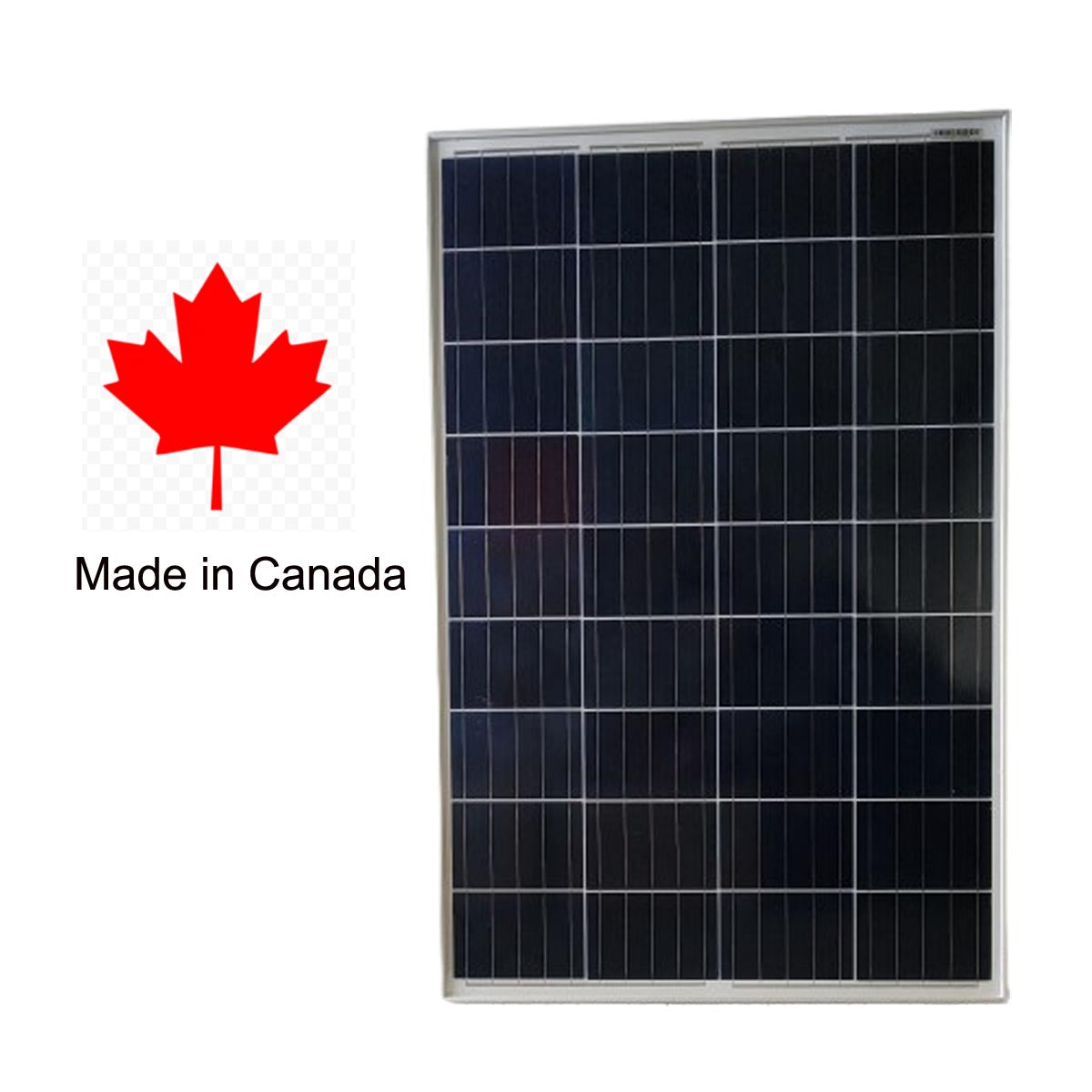

xGMA 100W Polycrystalline Solar Panel: Canadian-Made & CSA Certified
Proudly Made in Canada, the GMA GMAP6-36-100W is a premium 100W solar module engineered for reliable performance in harsh northern climates. This 12V-compatible panel is CSA Certified, meeting rigorous safety and quality standards for residential, commercial, and off-grid installations.
Engineered for Performance & Safety
- CSA Certified: Fully tested and certified to Canadian safety standards (CSA/UL 1703).
- Canadian Quality: Manufactured in Montreal, QC, by GMA Solar for superior craftsmanship.
- High Efficiency: Features 36 poly-crystalline cells delivering a 14.63% module efficiency.
- Extreme Weather Ready: Built to withstand snow loads up to 5400 Pa and high-velocity hail impact.
- Heavy-Duty Frame: Constructed with 35mm anodized aluminum for long-term structural integrity.
- Professional Pre-Wiring: Includes 900mm of 10 AWG UV-protected PV cable with IP68 MC4 connectors.
Electrical Specifications (@ STC)
| Peak Power (Pmax) | 100W (+3% Tolerance) |
| Maximum Power Voltage (Vmp) | 18.0V |
| Maximum Power Current (Imp) | 5.56A |
| Open-Circuit Voltage (Voc) | 21.9V |
| Short-Circuit Current (Isc) | 6.13A |
| Max System Voltage | 600V DC |
Mechanical Data
| Dimensions | 1020 x 670 x 35 mm (40.2" x 26.4" x 1.38") |
| Weight | 8.9 kg (19.6 lbs) |
| Front Glass | 3.2mm Tempered Low-Iron Glass |
| Junction Box | IP65 with 2 Bypass Diodes |
25-Year Power Warranty
GMA Solar provides an industry-leading 25-year performance warranty (10 years at 90% output, 25 years at 85% output) and a 10-year product warranty on materials and workmanship.
