Description
xThe Intelligent Heart of Your Home Power System

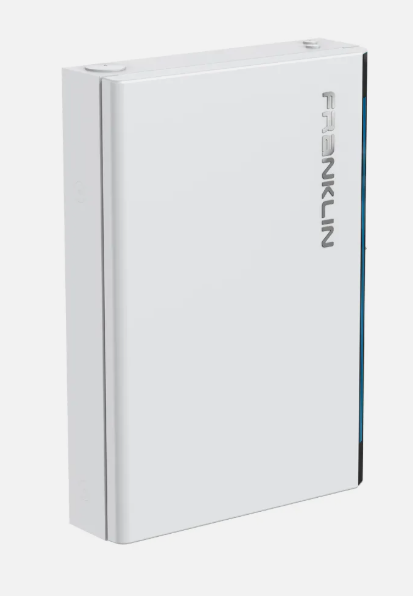

The FranklinWH aGate is an industry-leading smart energy management controller that integrates diverse energy sources—solar, battery, grid, and generator—into a single, high-performance ecosystem. It provides seamless transition during outages and sophisticated management of your home's electrical loads.
Key Performance Highlights:
- Seamless Transition: Features an ultra-fast switch time (<10ms) to ensure your home stays powered without interruption during a grid failure. ⚡
- Smart Load Management: Includes two built-in smart circuits for optional load shedding, protecting your battery life for essential needs. ⚖️
- Generator Integration: One of the few systems that can fully manage and integrate a standby generator for long-term backup. 🚜
- App-Based Control: Real-time monitoring and management of your entire energy system through the FranklinWH app. 📱
- Robust Safety: UL 1741 and UL 67 certified for reliable, code-compliant residential installations. 🛡️
Technical Specifications:
| Nominal Voltage | 120V / 240V AC |
| Max. Continuous Current | 200A |
| Internal Smart Circuits | 2 (Up to 50A each) |
| Communication | Ethernet, Wi-Fi, 4G/LTE |
| Enclosure Rating | IP56 / NEMA 3R (Indoor/Outdoor) |
📥 Download FranklinWH aGate Datasheet
📦 Ordering Note: The aGate is designed to work exclusively with the FranklinWH aPower battery modules. Contact our team for full system design assistance.
