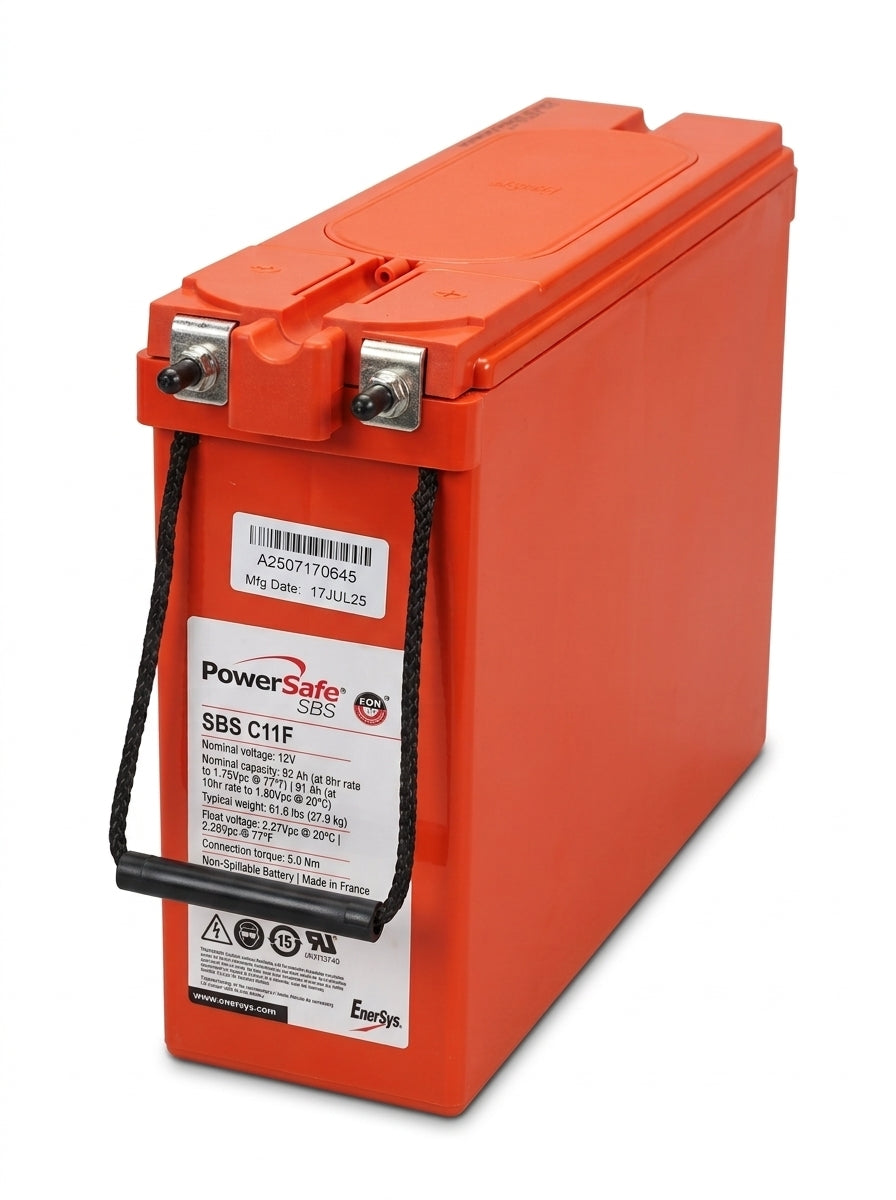

xEnerSys PowerSafe SBS C11F 12V 92Ah TPPL Front Terminal Battery
The EnerSys PowerSafe SBS C11F is a premium, high-density 12V 92Ah Valve Regulated Lead-Acid (VRLA) battery built with advanced Thin Plate Pure Lead (TPPL) AGM technology. Engineered for demanding telecommunications, cable broadband, and UPS standby power applications, the SBS C11F's slim front-terminal layout allows for easy, space-saving installation in standard 19-inch and 23-inch equipment racks and cabinets.
🚚
Freight Shipping & Minimum Order Notice
Due to unit weight (61.6 lbs / 28 kg per battery) and hazmat freight carrier requirements, a minimum order of 4 batteries is required for shipping.
Please contact us for an exact freight quote prior to ordering or for volume pallet quantity discounts.
Key Features & Highlights
- Thin Plate Pure Lead (TPPL) Technology: Delivers superior energy density, fast recharge acceptance, and exceptional long-life float service compared to standard AGM batteries.
- Front Terminal Design: Front-facing M6 threaded terminals streamline wiring, installation, and routine maintenance in narrow rack and cabinet footprints.
- Extreme Temperature Tolerance: Maintains high power reliability and extended shelf life under severe heat and cold operational environments.
- Flame-Retardant Enclosure: Encased in high-impact UL94 V-0 flame-retardant material resistant to extreme shock and vibration.
- Leak-Resistant Patented Seals: Dual-seat terminal post seals prevent corrosion and acid leakage for maximum safety.
Technical Specifications
| Specification Parameter | Details |
|---|---|
| Manufacturer | EnerSys |
| Product Line / Model | PowerSafe SBS C11F |
| Nominal Voltage & Capacity | 12 V DC / 92 Ah @20HR |
| Chemistry / Technology | VRLA / Thin Plate Pure Lead (TPPL) AGM |
| Terminal Type | M6 Front Terminal |
| Dimensions (L × W × H) | 16.4" × 4.1" × 10.1" (417 mm × 104 mm × 256 mm) |
| Weight | 61.6 lbs (28.0 kg) |
| Case Rating | UL94 V-0 Flame Retardant |
| Minimum Order Quantity | 4 Units Minimum (Freight Order) |
Ideal Applications
Telecommunications Rack Systems Cable Broadband Outdoor Cabinets Uninterruptible Power Supplies (UPS) Off-Grid & Standby Battery Banks
