Description
x
Whole-Home Backup System Hub

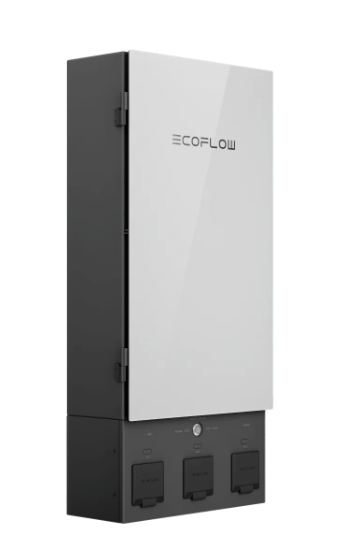

EcoFlow Smart Home Panel 2 is the center of your whole-home backup system. Compatible with EcoFlow DELTA Pro Ultra, batteries, generators and solar panels, complete with auto-switchover for instant backup.
Smart Energy Management
Circuit control allows for more extended backup and prepares your system for outages with an hourly weather assessment.
Save Money Everyday
Customize your energy consumption based on TOU(Time Of Use) peak and off-peak rates and the amount of solar energy your home generates.
The Whole-Home Backup System Hub
The commanding force behind your power system.
EcoFlow Smart Home Panel 2 is the hub of the powerful EcoFlow DELTA Pro Ultra that allows you to get the full potential out of your energy system. Connect your home circuits with EcoFlow DELTA Pro Ultra and utilize up to 3 plug-and-play inverters and 15 stackable 6kWh batteries. Alternatively connect 3 x EcoFlow DELTA Pro 3 units with 6 x Extra Batteries for energy storage up to 36kWh. It's not just for longer backup but lets you to control and run every single household appliance. EcoFlow Smart Home Panel 2 is not only future-proofed to work with our next-gen power solutions, but it works with EcoFlow DELTA Pro, too.
20-ms Auto-Switchover
The nights of fumbling for a torch are over.
When an outage hits, there's no need to brave the dark, cold night to switch to your backup manually. EcoFlow Smart Home Panel 2's automatic switchover feature ensures your home remains powered even when you're away. Forget spoiled food and damaged appliances. Embrace uninterrupted power so that life never stops.
-
QuickLook
-
Dimensions (in)
Distribution Panel: 24.8 x14.9 x 6.7 in Battery Connection Box: 6.9 x 14.4 x4.3 in Distribution Panel+Battery Connection Box: 32.4x144.9x6.7 in
-
Warranty
10 Years
-
Net Weight (lb)
Distribution Panel: 39.7 lb Battery Connection Box: 7.2 lb Distribution Panel + Battery Connection Box: 52.9 lb
-
-
Output
-
Output Voltage
120V/240V
-
Wire Diameter
14-6AWG
-
Circuit Breaker Current
Max. 60A
-
Number of Loads
12
-
Control
App Remote Control
-
Output Wiring Methods
L1/L2/N/PE
-
-
Grid Access Input
-
Input Voltage
120V/240V
-
Input Frequency
60Hz
-
Max. Input Current
100A
-
Wire Diameter
4AWG
-
Circuit Breaker Current
Max. 100A
-
-
Generator Access Input
-
Input Voltage
120V/240V
-
Input Frequency
60Hz
-
Max. Gas Generator Input
12kW
-
Wire Diameter
1AWG
-
Circuit Breaker Current
Max. 50A
-
-
Home Backup Access Input
-
Input Voltage
120V/240V
-
Input Frequency
60Hz
-
Max. Input Current
30A (one battery)
-
Max. Input Power
7200W (one battery)
-
-
Environmental Data
-
Operating Temperature
-22°F-120°F
-
Storage Temperature
-40°F-158°F
-
Max. Operating Altitude
6561.6 ft
-
Relative Humidity
100%
-
Protection Level
Distribution Panel: NEMA TYPE 3R rainproof Battery Connection Box: NEMA TYPE 1
-
