Description
xCrown CR-430: The Industry Leader in 6V L16 Capacity
🚚 Shipping & Pickup Requirements
- Shipping: Minimum order of 4 batteries required for freight shipping.
- Shipping Rates: Please CONTACT US for a custom freight quote prior to ordering.
- Local Pickup: No minimum requirement! Single units available for pickup at our warehouse.
*At 121 lbs per unit, this battery must ship via palletized freight. Please provide your postal code for a guaranteed shipping quote.*

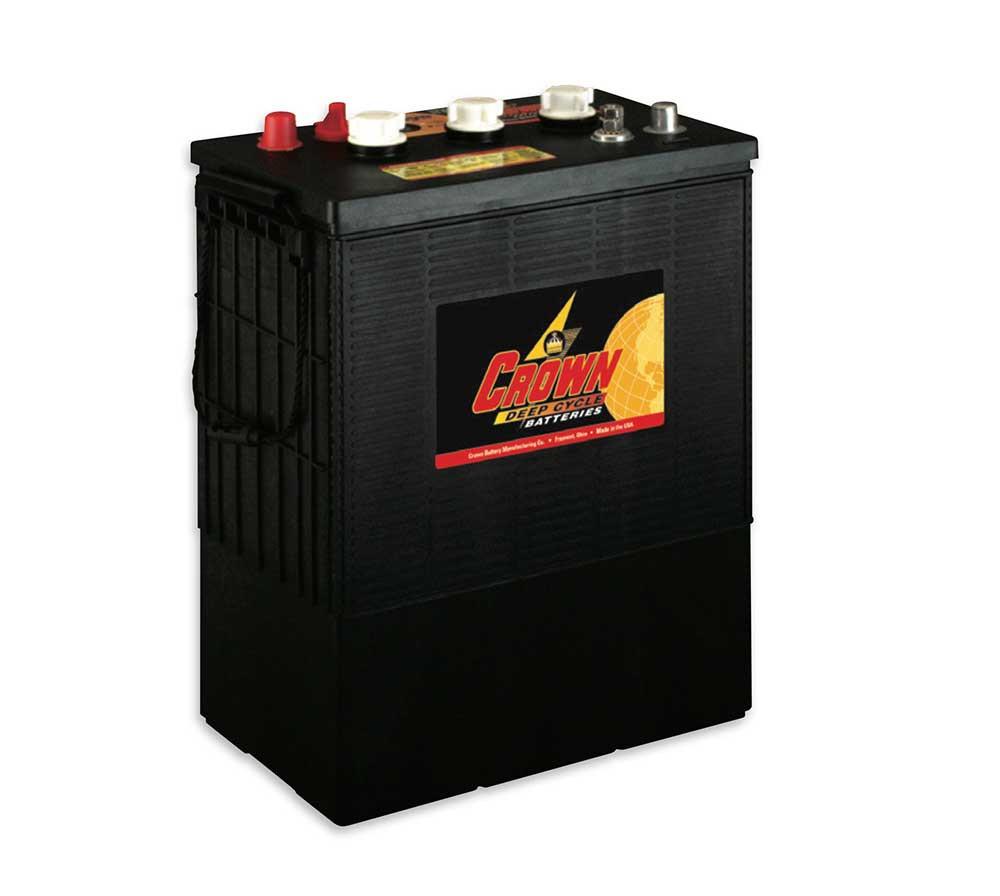

The Crown CR-430 (6V 430Ah) is the ultimate energy storage solution for those who refuse to compromise on capacity. As the highest amp-hour model in the L16 (Group 903) family, the CR-430 delivers a massive 2.5 kWh of energy per battery. Engineered in the USA with Crown’s heaviest-duty plate construction, it is the premier choice for large-scale off-grid solar arrays, commercial backup power systems, and industrial material handling.
Technical Data & L16 Performance Specifications
Download Crown CR-430 Datasheet (PDF)Why the CR-430 is the Professional's Choice
- Maximum Amp-Hour Output: 430Ah (20-Hr rate) allows for deeper discharge cycles and longer autonomy in solar applications.
- Z³ Plate Technology: Features a heavy-duty "Diamond Z" grid design that provides superior electrical conductivity and durability.
- Extra Thick Plates: Crown's most robust lead plates ensure the longest possible life in demanding deep-cycle environments.
- X-TEND Container: Oversized electrolyte reservoir extends maintenance intervals by keeping plates submerged longer.
- PROeye™ Integrated Levels: Allows for quick, safe, and visual electrolyte inspections without removing vent caps.
Technical Specifications
| Nominal Voltage | 6 Volts |
| 20-Hour Rate Capacity | 430 Ah |
| 5-Hour Rate Capacity | 340 Ah |
| RC Minutes @ 75 Amps | 285 Minutes |
| BCI Group Size | 903 (High-Capacity L16) |
| Terminal Type | Standard (STD) |
Physical Dimensions & Weight
| Length | 12.38 in (314 mm) |
| Width | 7.19 in (183 mm) |
| Height (to top of terminals) | 16.13 in (410 mm) |
| Approximate Weight | 122 lbs (55.3 kg) |
CRITICAL FITMENT NOTE: The CR-430 is a "Super L16" battery. At 16.13 inches tall, it is taller than standard L16 batteries. Please ensure your battery rack or enclosure has at least 19 inches of vertical clearance for installation and maintenance.
Shipping
x
This product is oversized and not eligible for standard courier shipping. To ensure you receive the most competitive shipping rate, please provide your postal code along with the list of products and quantities you wish to order. We will then prepare a customized shipping quote for you.
