xCrown CR-390: The Ultimate 6V 390Ah L16 Powerhouse
🚚 Shipping & Pickup Requirements
- Shipping: Minimum order of 4 batteries required for freight shipping.
- Shipping Rates: Please CONTACT US for a custom freight quote prior to ordering.
- Local Pickup: No minimum requirement! Single units available for pickup at our warehouse.
*At 113 lbs per unit, this battery must ship via palletized freight. Please provide your postal code for an accurate shipping quote.*

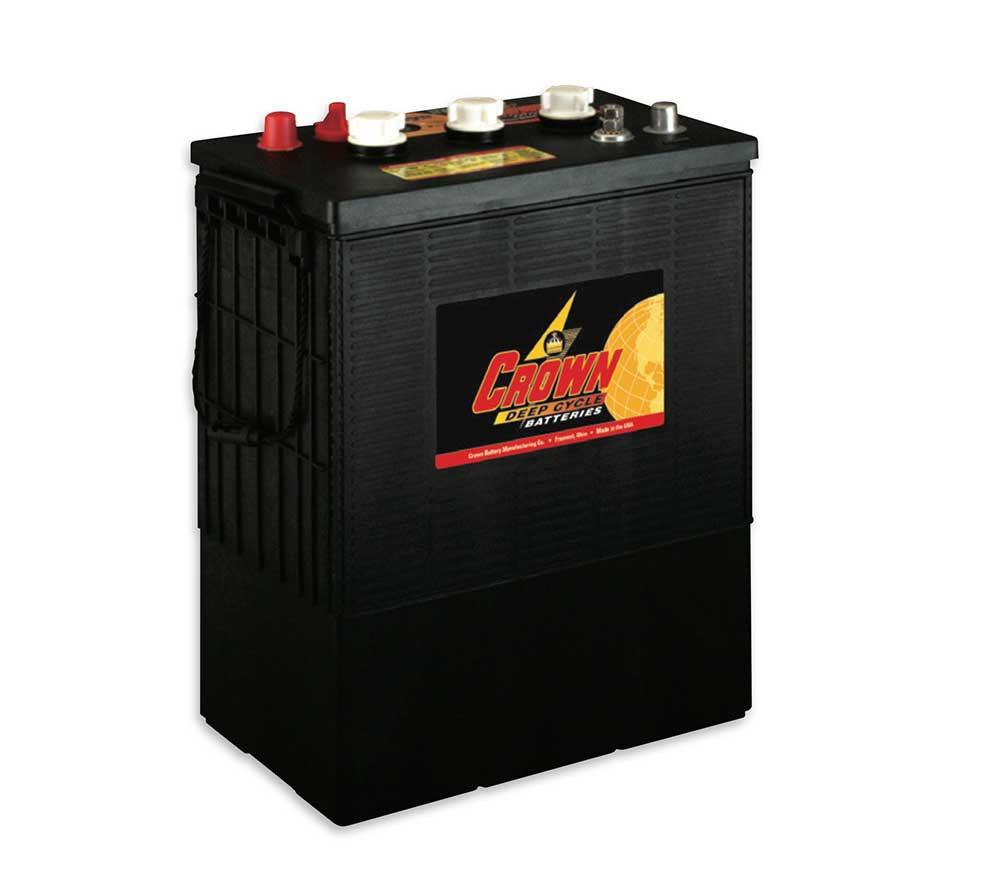

The Crown CR-390 (6V 390Ah) is the heavy-duty leader of the Crown deep-cycle line. Built in the Group 903 (L16) footprint, this battery is specifically engineered for large residential off-grid solar systems, commercial backup power, and heavy-duty industrial equipment. With a staggering 2.27 kWh of energy storage (at the 20-hr rate), the CR-390 offers the high capacity needed to reduce the number of parallel strings in your battery bank.
Technical Data & L16 Performance Specs
Download Crown CR-390 Datasheet (PDF)Industrial Strength for Off-Grid Living
- Maximum Energy Density: 390Ah capacity provides massive run-times, perfect for large 48V solar banks.
- L16 Standard Footprint: Direct replacement for Trojan L16H or Rolls S-550 batteries.
- Z³ Plate Design: Utilizes Crown’s heaviest grids and premium active material for maximum cycle life and durability.
- X-TEND Container: Features an oversized electrolyte reservoir to minimize maintenance and prevent plate dry-out.
- PROeyeâ„¢ Inspection: Simplifies maintenance with a built-in electrolyte level indicator.
Technical Specifications
| Nominal Voltage | 6 Volts |
| 20-Hour Rate Capacity | 390 Ah |
| 5-Hour Rate Capacity | 310 Ah |
| RC Minutes @ 75 Amps | 250 Minutes |
| BCI Group Size | 903 (L16 Footprint) |
| Terminal Type | Standard (STD) |
Physical Dimensions & Weight
| Length | 12.38 in (314 mm) |
| Width | 7.19 in (183 mm) |
| Height (to top of terminals) | 16.13 in (410 mm) |
| Approximate Weight | 115 lbs (52.2 kg) |
INSTALLATION NOTE: The CR-390 is an "L16" style battery and is significantly taller (16.13") than GC2 or J305 units. Please confirm your battery rack or enclosure height before purchasing.
