Description

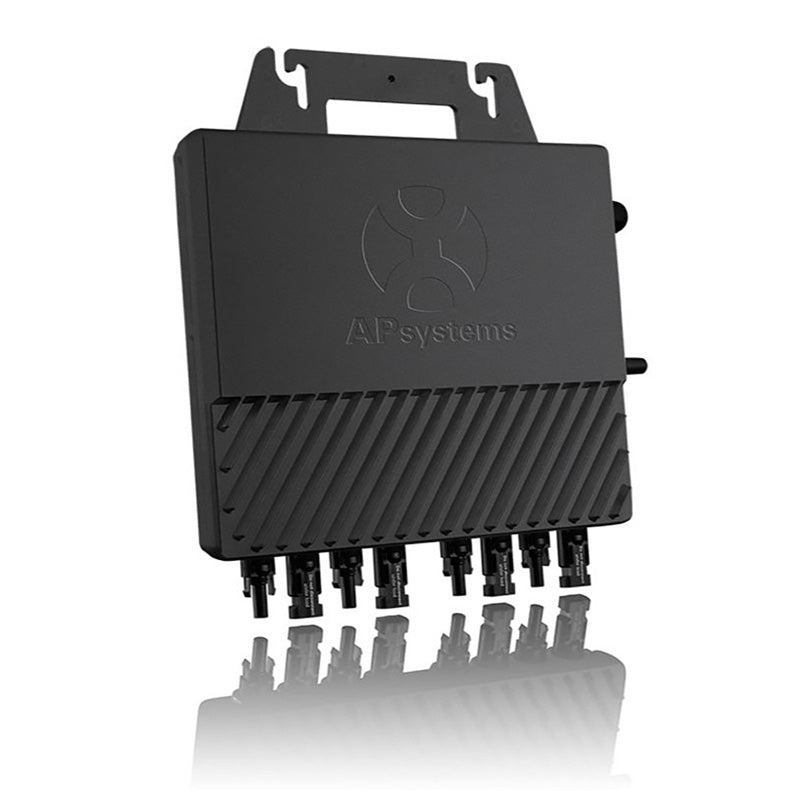

xThe APsystems QS1A is a grid-tied microinverter with intelligent networking and advanced monitoring systems to ensure maximum efficiency, high reliability of the QS1A with 4 independent MPPT inputs, maximum continuous AC output power reaching 1500W. Quarter the inverters and quarter the installation means real cost savings for residential and commercial customers.
*The inverter does not has UL1741SB certification.
|
Input Data (DC) |
|
|
Recommended PV Module Power (STC) Rang |
250Wp-525Wp+ |
|
MPPT Voltage Range |
30V-52V |
|
Operation Voltage Range |
16V-55V |
|
Maximum Input Voltage |
60V |
|
Startup Voltage |
20V |
|
Maximum Input Current |
14A x 4 |
|
Maximum DC Short Circuit Current |
16A x 4 |
|
Output Data (AC) |
|
|
Maximum Continuous Output Power |
1500W |
|
Nominal Output Voltage/ Range |
240V/ 211V-264V |
|
Adjustable Output Voltage Range |
150V-280V |
|
Nominal Output Current |
6.25A |
|
Maximum Units per Branch |
2 units per 20A AC breaker 3 units per 30A AC breaker |
|
Nominal Output Frequency/ Range |
60Hz/ 59.3Hz-60.5Hz |
|
Adjustable Output Frequency Range |
55Hz-65Hz |
|
Output Power Factor Rating |
>0.99 |
|
Total Harmonic Distortion |
<3% |
|
Maximum Output Fault Current (AC) and Duration |
47.3 Apk, 1.4 ms of duration |
|
Efficiency |
|
|
Peak Efficiency |
96.5% |
|
Nominal MPPT Efficiency |
99.5% |
|
Night Power Consumption |
30mW |
|
Mechanical Data |
|
|
Operating Ambient Temperature Range |
-40°F to +149°F (-40°C to +65°C) |
|
Storage Temperature Range |
-40°F to +185°F (-40°C to +85°C) |
|
Dimensions (W x H x D) |
11.1” x 9.1” x 1.6” (281mmx 231mmx 41.3mm) |
|
Weight |
9.9lbs (4.5kg) |
|
AC Bus Cable |
10AWG/12AWG |
|
Enclosure Rating |
Type6 |
|
Cooling |
Natural Convection - No Fans |
|
Features |
|
|
Communication |
Wireless |
|
Transformer Design |
High Frequency Transformers, GalvanicallyIsolated |
|
Monitoring |
Via EMA* Online Portal |
|
Certificate & Compliance |
|
|
Compliance |
UL1741; CSA C22.2 No. 107.1 |
|
Grid Connection Compliance |
IEEE1547 |
