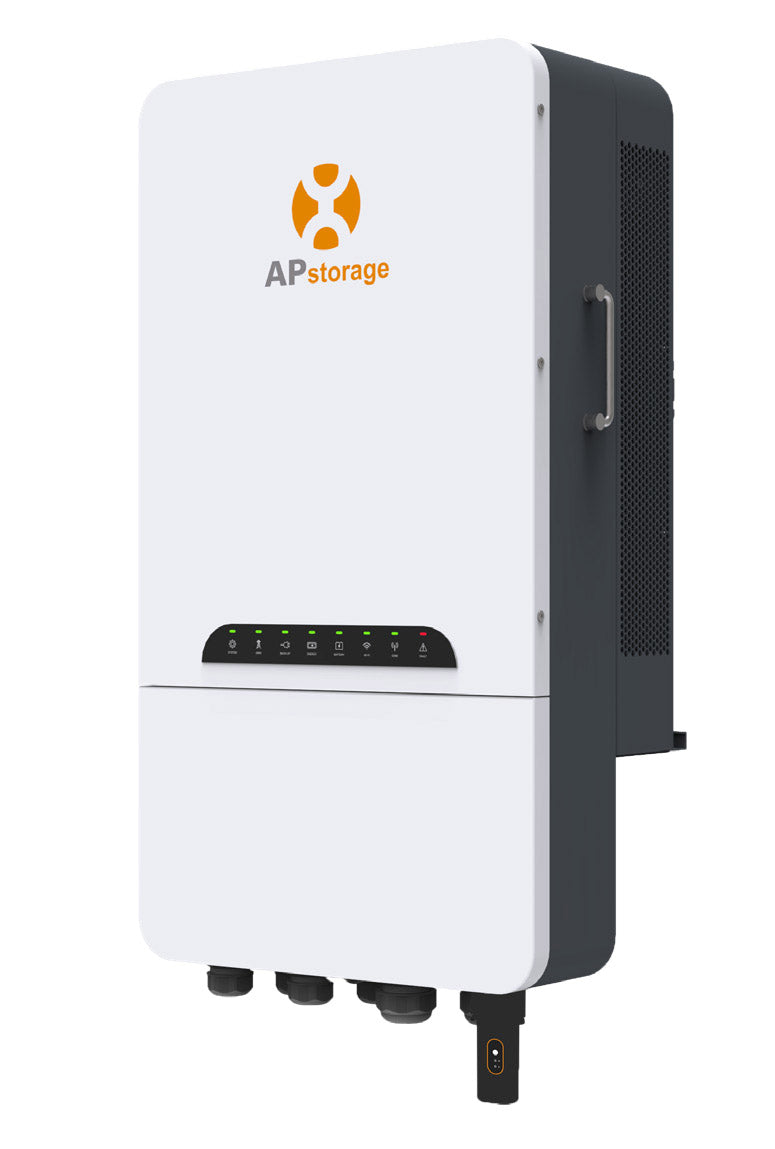

xAPsystems ELS-11.4K-NA Single-Phase Battery Inverter

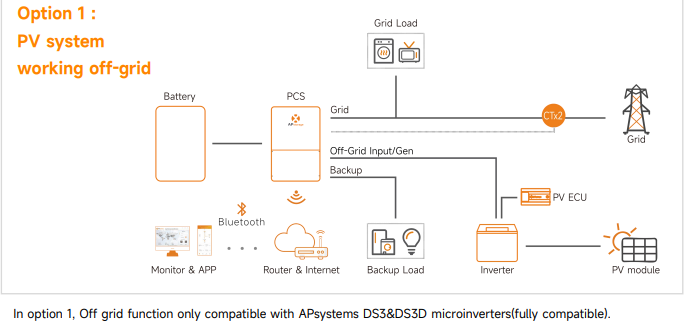

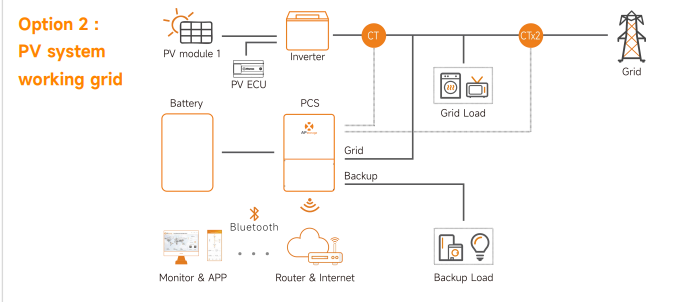

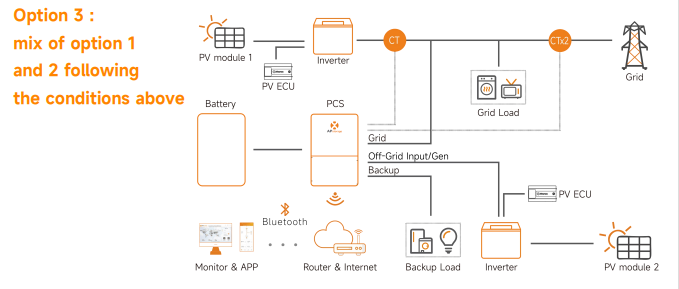

The APsystems ELS-11.4K-NA is a sophisticated Power Conversion System (PCS) that serves as the heart of a residential energy storage system. Designed for AC-coupled installations, it works seamlessly with both new and existing PV systems. With a massive 11.4kW nominal power rating and UPS-level switching times (<10ms), it ensures your critical loads remain powered during grid outages while maximizing your daily energy savings.
Smart Storage & Energy Management
- Versatile Energy Modes: Choose from Backup, Self-Consumption, Peak-Shaving, or Peak-and-Valley modes via the intelligent EMA software.
- High Performance: Delivers up to 11,400VA of continuous power and 17,100VA of peak backup power (10s) to handle high-surge appliances.
- Split-Phase Support: Native 120/240V split-phase output eliminates the need for an external auto-transformer.
- Safety First: Features IP65 ingress protection, high/low voltage isolation, and a safe 48V low-voltage battery input.
- Generator Integration: Includes a dedicated interface for connecting a backup generator with dry contact controls.
- Intelligent Charging: Advanced technology protects battery life and is compatible with leading low-voltage battery brands.
Technical Specifications
| Nominal Output Power | 11400 VA |
| Peak Backup Power | 17100 VA (10 seconds) |
| Max Efficiency | 95.6% |
| Battery Voltage Range | 40V - 60V DC |
| Switching Time | < 10ms (UPS-level) |
| Warranty | 10 Years (Standard) |
Technical Downloads
View full specifications and installation guidelines:
Installation Note: This unit must be installed by a qualified professional. Use of the APsystems EMA Manager app is required for commissioning and system monitoring.
