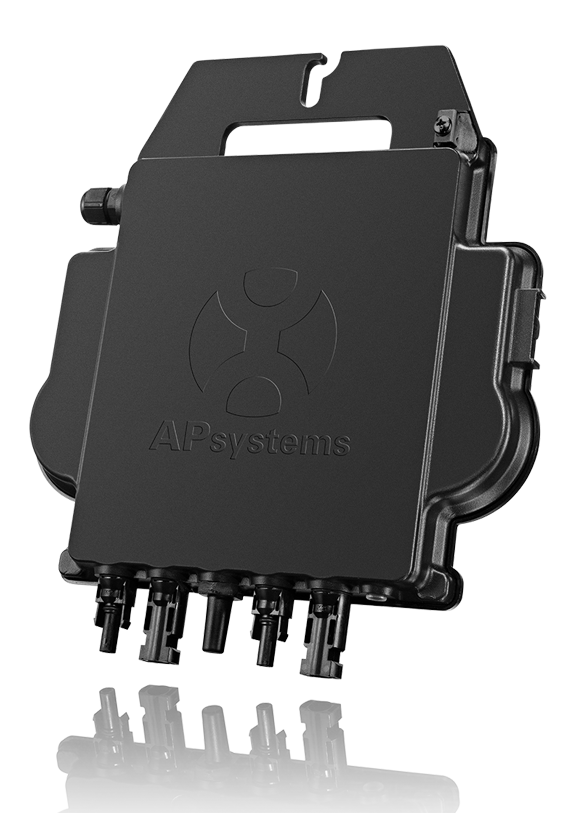

xAPsystems DS3-L Dual-Module Microinverter (768VA Peak Output)
The APsystems DS3-L is a game-changer for residential and commercial solar installations. As part of APsystems' 3rd generation of dual-module microinverters, the DS3-L reaches unprecedented power levels to adapt to today's larger, high-capacity PV modules. With 768VA peak output and two independent MPPT channels, this unit ensures maximum energy harvest even in challenging conditions like partial shading or mismatched panel orientations.
Industry-Leading Performance & Reliability
- Dual-Module Efficiency: Connect two solar modules (up to 550W+) to a single microinverter, reducing hardware and installation time.
- 25-Year Standard Warranty: Enjoy long-term peace of mind with a 25-year warranty (requires monitoring via the APsystems ECU).
- Encrypted Zigbee Communication: Faster, more secure wireless communication for real-time performance tracking.
- High Durability: Silicone-encapsulated components reduce stress on electronics and facilitate superior thermal dissipation.
- Grid-Interactive: Fully compliant with CA Rule 21 (UL 1741 SB) requirements for modern grid safety standards.
- Backward Compatible: Works seamlessly with existing QS1 and YC600 accessories and trunk cables.
Technical Specifications
| Peak Output Power | 768 VA |
| Nominal Output Voltage | 240V / 208V |
| MPPT Voltage Range | 25V - 55V |
| Maximum Input Voltage | 60V |
| Efficiency (CEC) | 96.5% |
| Dimensions (W x H x D) | 10.3” x 8.6” x 1.6” |
Installer Tip: To be eligible for the 25-year warranty, the microinverters must be registered and monitored through the APsystems EMA portal using an ECU-R, or ECU-C Gateway.
*Note: AC Bus Trunk Cable and ECU Gateway are required for operation and monitoring (sold separately).
