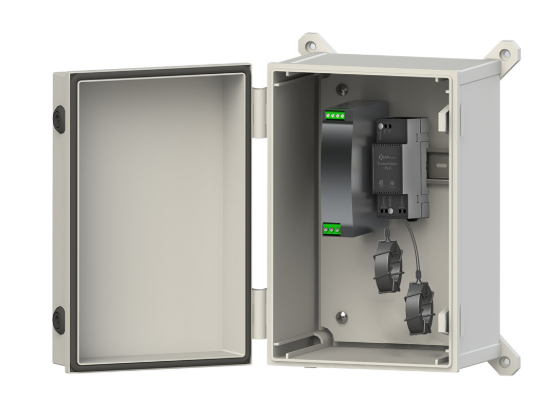

xAPsmart RSD Dual Transmitter PLC Outdoor Kit
The APsmart RSD Dual Transmitter PLC Outdoor Kit is designed for solar PV systems that require a robust, multi-string rapid shutdown signaling solution. By utilizing Power Line Communication (PLC), this kit broadcasts a signal through two independent cores, allowing a larger number of SunSpec-certified RSDs to remain operational. In an emergency, the signal is cut, and the connected APsmart RSD-S-PLC or RSD-D units immediately de-energize the array to safe levels.
High-Capacity Rapid Shutdown Signaling
- Dual Core Configuration: Includes two PLC cores to support more strings or larger cable runs compared to single-core kits.
- NEC 2017 & 2020 Compliant: Fully satisfies 690.12 requirements for rapid shutdown on buildings.
- SunSpec Certified: Broadly compatible with SunSpec-compliant inverters and third-party rapid shutdown devices.
- Outdoor Rated: Pre-installed in a NEMA 4X (IP65) enclosure for superior protection against UV, rain, and extreme temperatures.
- Integrated Power Supply: Features a built-in 85-264VAC power supply for reliable operation across various grid conditions.
- Fail-Safe Operation: Automatically executes rapid shutdown upon loss of AC power, ensuring first-responder safety.
Technical Specifications
| Communication Mode | PLC (SunSpec Interoperable) |
| Number of Cores | 2 (Dual Core) |
| Enclosure Type | NEMA 4X / IP65 Outdoor Rated |
| Operating Voltage | 100-240 VAC Input |
| Dimensions | 300mm x 200mm x 150mm (approx.) |
Technical Downloads
View full technical specifications and installation guidelines for the Dual Transmitter Kit:
Installation Requirement: This transmitter kit is specifically intended for use with SunSpec-certified rapid shutdown devices from APsmart or other compatible manufacturers.
