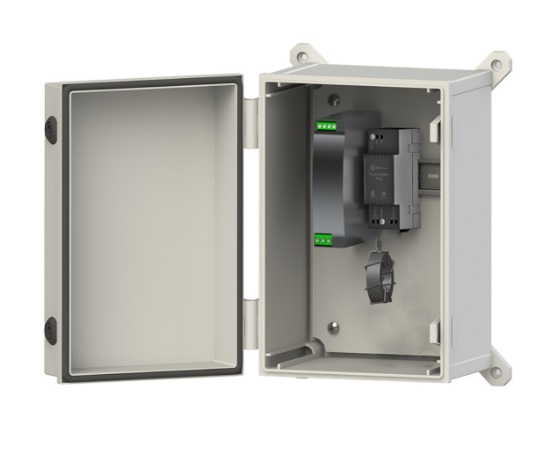

xAPsmart RSD Single Transmitter PLC Outdoor Kit
The APsmart RSD Single Transmitter PLC Outdoor Kit is the core communication hub for your rapid shutdown system. By broadcasting a continuous "keep-alive" signal via Power Line Communication (PLC), it allows SunSpec-certified RSD units to remain active. In the event of an emergency or AC power loss, the signal stops, and the RSD units immediately execute a rapid shutdown, ensuring your solar array meets NEC 2017 & 2020 690.12 safety requirements.
Reliable Rapid Shutdown Control
- NEC Compliant: Fully meets NEC 2017 & 2020 (690.12) standards for rooftop solar safety and rapid shutdown.
- SunSpec Certified: Uses standard SunSpec PLC signals for high compatibility with various inverters and RSD devices.
- All-in-One Outdoor Solution: Comes pre-installed in a rugged, outdoor-rated enclosure to withstand harsh environmental conditions.
- Wide Voltage Support: Includes a power supply that supports a broad range of AC input voltages for easy integration into different electrical systems.
- Scalable Performance: Capable of managing signals for large PV arrays, ensuring reliable shutdown across all connected modules.
- Simple Installation: Designed for straightforward mounting and wiring, reducing complexity for installers.
Technical Specifications
| Communication Type | PLC (SunSpec Interoperable) |
| Enclosure Rating | Outdoor Rated (NEMA 4X / IP65) |
| Core Support | Single Core included |
| Operating Temperature | -40°C to +85°C |
| Compliance | NEC 2017/2020 690.12; SunSpec Certified |
Technical Downloads
View full technical specifications and wiring diagrams for the Transmitter PLC Outdoor Kit:
Important Note: This transmitter kit is designed to work with APsmart RSD-S-PLC or RSD-D devices, as well as other SunSpec-certified rapid shutdown units.
