Description

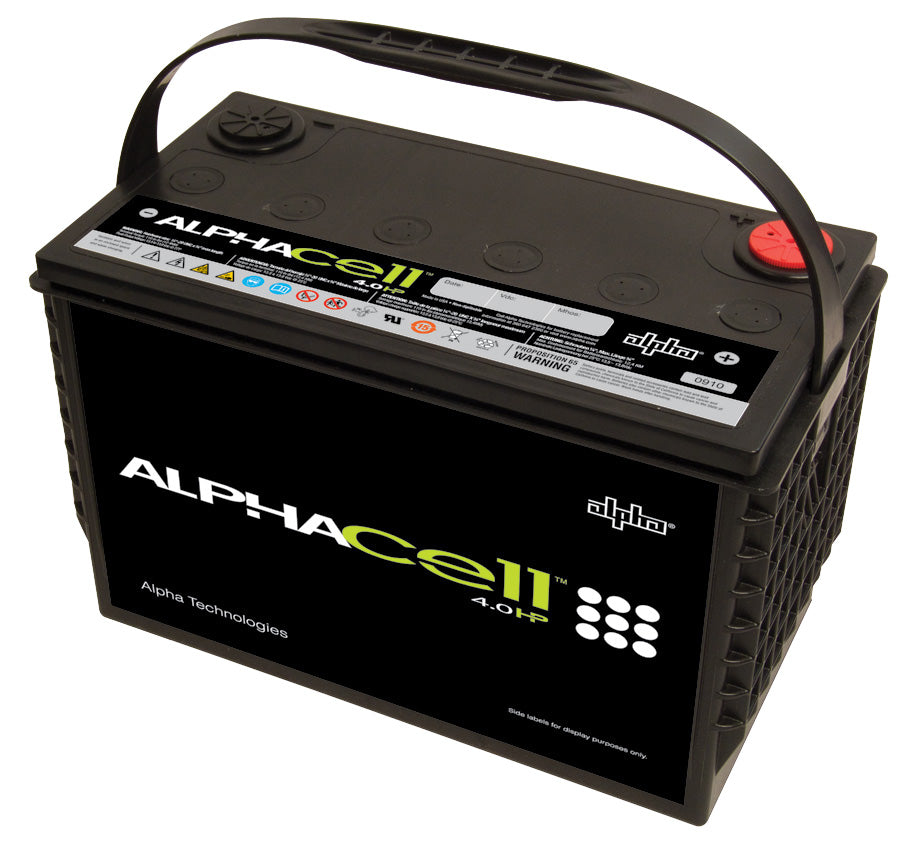

xAlphaCell 4.0HP 12V 114Ah High-Performance VRLA / AGM Battery
The AlphaCell 4.0HP (12V 114Ah) is a premium, high-performance Valve Regulated Lead-Acid (VRLA) AGM battery specifically engineered for demanding cable broadband, telecommunications, and critical power back-up systems. Designed for maximum runtime and long service life in harsh outdoor environments, the 4.0HP delivers superior high-rate discharge performance and durability.
🚚
Freight Shipping & Minimum Order Notice
Due to heavy unit weight (74 lbs / 35.6 kg per battery) and hazmat freight carrier guidelines, a minimum order of 3 batteries is required for shipping.
Please contact us for a custom freight quote prior to ordering or for bulk pallet quantity pricing.
Key Features & Highlights
- 114 Ah High Capacity Rating: High-density plate design offers increased capacity and longer backup duration under heavy power demands.
- Pure Lead / AGM Technology: Maintenance-free Absorbed Glass Mat (AGM) construction eliminates watering needs and prevents electrolyte leakage.
- Wide Operating Temperature Range: Rugged design maintains high performance and reliability across severe summer heat and freezing winter conditions (-40°C to 60°C / -40°F to 140°F).
- Flame-Retardant Enclosure: Heavy-duty container designed for safety, structural integrity, and long service float life.
- Ideal for String Configurations: BCI Group 31 footprint with top threaded insert terminals (¼"-20 UNC) for clean 36V, 48V, or higher voltage battery bank connections.
Technical Specifications
| Specification Parameter | Details |
|---|---|
| Brand / Line | AlphaCell (Alpha Technologies) |
| Model / Part Number | AlphaCell 4.0HP |
| Nominal Voltage & Capacity | 12 V DC / 114 Ah (@ 20-hour rate) |
| Chemistry / Type | VRLA (Valve Regulated Lead-Acid) / Pure Lead AGM |
| Dimensions (L × W × H) | 13.4" × 6.8" × 8.5" (337.8 mm × 172.7 mm × 223.5 mm) |
| Weight | 74 lbs (35.6 kg) |
| BCI Group Size / Terminal | Group 31 / Threaded Insert ¼"-20 UNC |
| Minimum Order Quantity | 3 Units Minimum (Freight Order) |
Ideal Applications
Solar Applications Telecommunications Backup Industrial Uninterruptible Power Supplies (UPS) Outdoor Standby Power Systems
Download Technical Datasheet
Review full discharge rates, mechanical dimensions, temperature performance curves, and terminal specifications in the official AlphaCell document.
📄 Download AlphaCell 3.5 & 4.0HP Datasheet (PDF)Shipping
