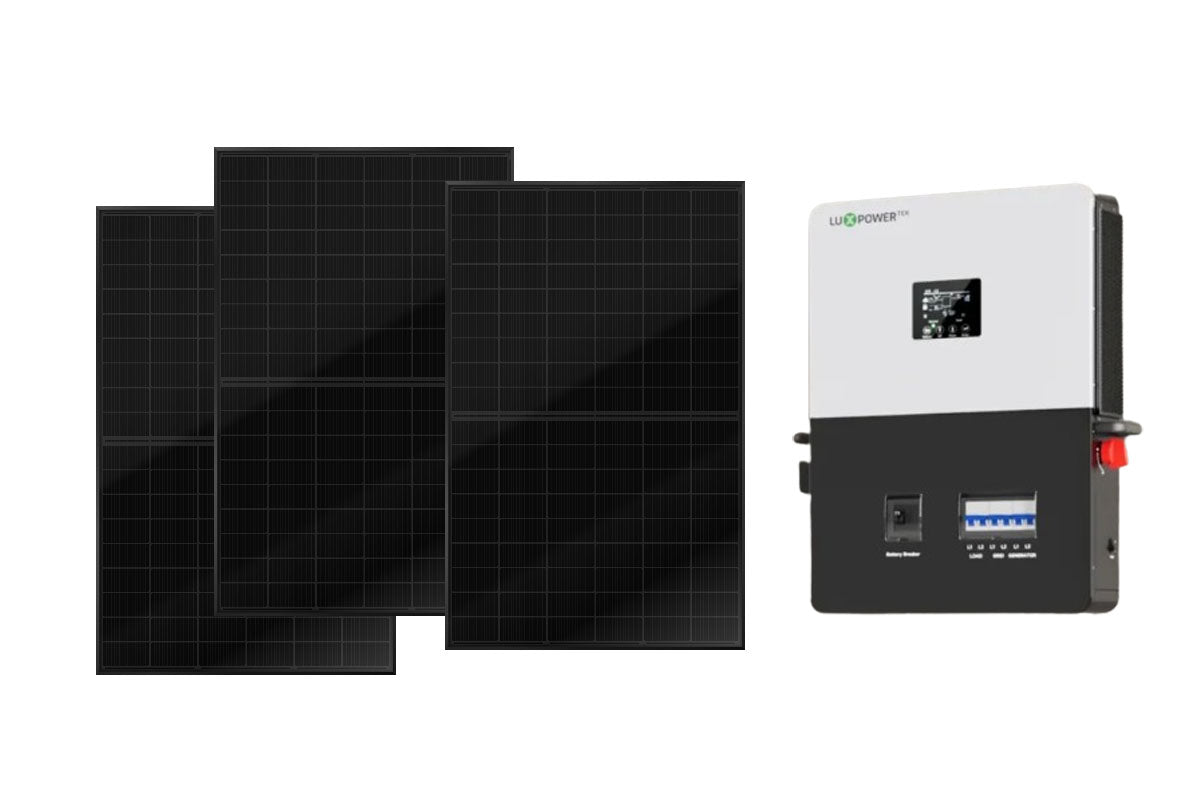

5.28kW Premium Off-Grid Hybrid Kit - Luxpower 6k SNA & Thornova Bifacial Array

The 5.28kW Thornova Bifacial Kit is an elite energy solution designed for remote cabins, off-grid homes, and reliable emergency backup. Built around the Luxpower LXP-SNA-US-6K inverter, this system delivers clean 120V/240V split-phase power, making it capable of running essential well pumps, tools, and household appliances without a utility connection.

This kit features 12x Thornova 440W Bifacial Solar Panels. These N-Type TOPCon modules are engineered to capture sunlight from both sides, providing up to a 30% boost in energy harvest when installed on light-colored roofs or ground mounts. To ensure a professional and safe installation, we include two pairs of 50ft #10 MC4 solar cables, providing the heavy-duty conductivity required for 5kW+ DC arrays.

Kit Components & Performance:

• 12x Thornova 440W Bifacial Panels: High-efficiency N-Type cells with 22.5% module efficiency and 30-year linear power warranty.
• Luxpower 6k SNA Inverter: A true off-grid workhorse with 6,000W output, 8,000W PV input capacity, and an integrated generator port.
• 2 Pairs of 50ft #10 MC4 Cables: UV-rated, 10AWG copper wiring designed for high-current DC transmission and flexible panel placement.
• 2 x 5ft 2/0 Inverter Cable
• Dual MPPT Tracking: The inverter’s two independent trackers allow you to split your 12 panels into two strings for optimal performance in shaded conditions.
• Split-Phase Power: Native 120V/240V output—no external transformers required to run heavy duty equipment.
• Parallel Scalability: Need more power later? The Luxpower 6k series supports paralleling up to 16 units for massive energy growth.

Technical Specifications:

Technical Tip: For the most efficient setup, wire your 12 panels into two strings of 6 panels (one string per MPPT). This stays well within the 120V–385V MPPT voltage window, ensuring the inverter wakes up early and stays on late into the evening.
