Description

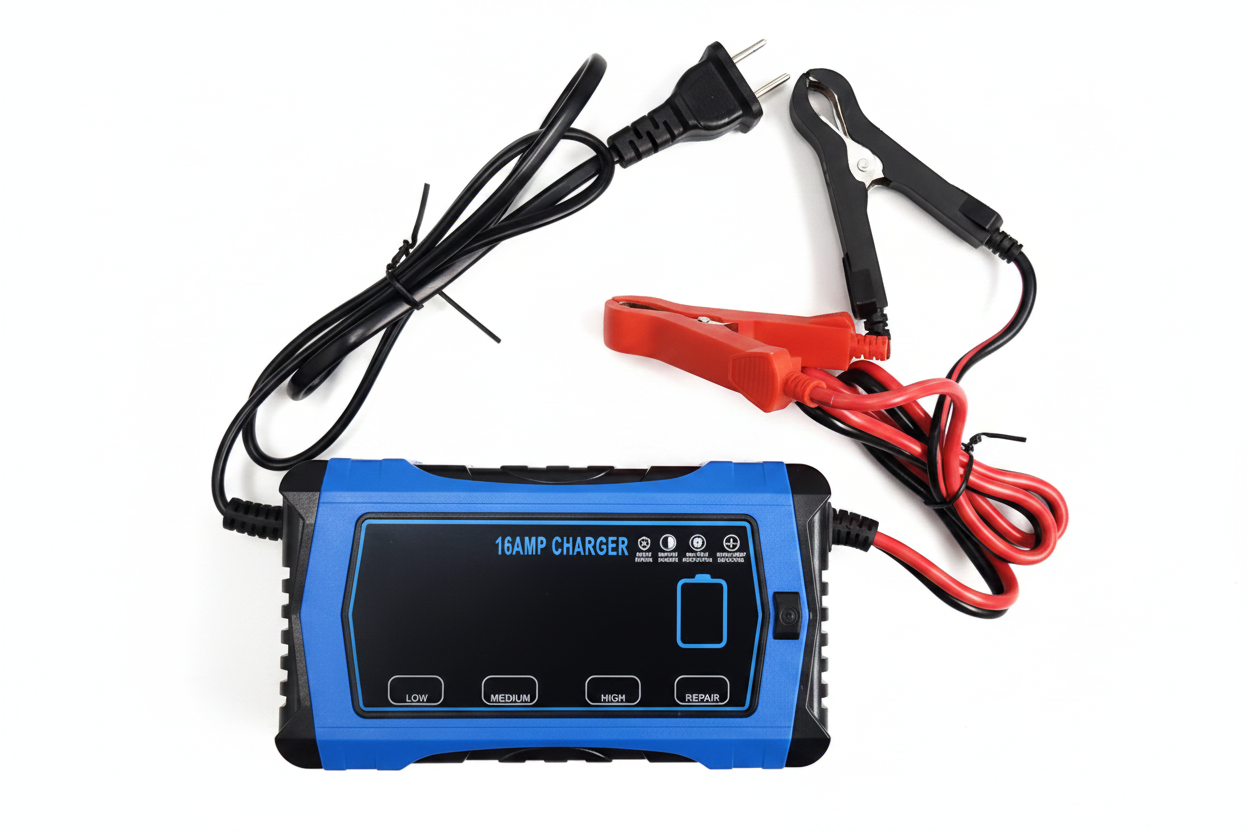

xHaitan 16A Multi-Voltage Smart Battery Charger & Maintainer (6V / 12V / 24V)
Haitan 16A Smart Battery Charger is a versatile, microprocessor-controlled 7-stage automatic charger and trickle maintainer designed for 6V, 12V, and 24V batteries. Engineered to extend battery life and restore weak performance, this charger supports Lithium, LiFePO4, AGM, GEL, SLA, Flooded, WET, EFB, and Deep Cycle batteries.
Key Features & Performance Advantages
- Microprocessor-Controlled 7-Stage Charging: Features an optimized charging sequence—Soft Start, CC Charging, CV Charging, Trickle Charge, Repair Charge, FULL, and Maintain Charge—for maximum efficiency and gentle battery care.
- Multi-Voltage Automatic Recognition: Detects battery voltage automatically and supports 6V, 12V, and 24V systems. Includes a dedicated 24V Forced Charging Mode for severely depleted batteries.
-
Adjustable Charging Current: Features selectable Low, Medium, and High current modes:
- 6V Mode: Low (1.5A) / Medium (3A) / High (5A)
- 12V Mode: Low (2A) / Medium (8A) / High (16A)
- 24V Mode: Low (2A) / Medium (5A) / High (10A)
- Pulse Repair Mode: Advanced recovery feature to repair and restore old, idle, sulfated, or stratified lead-acid batteries (maximum 24-hour cycle).
- Real-Time LED Digital Screen: Displays real-time voltage (V), dynamic charging current (A), internal charger temperature (°C/°F), charge level status, and fault alerts.
- Auto-Memory & Smart Protection: Built-in safeguards against overcharging, reverse polarity, short circuits, sparks, overtemperature, and overcurrent. Auto-memory returns to your last selected mode when re-connected.
- Active Cooling Fan: Integrated cooling fan automatically adjusts speed based on internal temperature for safe, stable operation.
Technical Specifications
| Specification Parameter | Details |
|---|---|
| Model | 16AMP/16A-Charge |
| AC Input Voltage | 100–240V AC ~ 50/60Hz |
| Input / Output Power | Max Input: 240W | Max Output: 200W |
| Applicable Battery Voltage | 6V / 12V / 24V |
| Charging Current Output | 6V (Up to 5A) | 12V (Up to 16A) | 24V (Up to 10A) |
| Minimum Start Voltage | 2V |
| Compatible Battery Types | Lithium (with BMS), LiFePO4, AGM, GEL, SLA, WET, Flooded, EFB, Deep Cycle |
| Net Weight / Dimensions | 500g | 150 mm × 85 mm × 65 mm |
| Operating Ambient Temperature | -20°C to 40°C (-4°F to 104°F) |
Screen Indicator Guide
- FUL: Battery is fully charged. In trickle charge mode maintaining voltage safely.
- End: Pulse repair process completed (24-hour cycle finish).
- OFF: Standby mode / battery missing or loose clamps connection.
- Er0: Battery error (check for reversed polarity, wrong battery type, or damaged battery).
- PUL: Repair mode active (desulfating and restoring lead-acid battery).
Important Compatibility Note: Pulse repair mode is for lead-acid batteries only. Do not use repair mode on lithium or badly damaged batteries. All lithium batteries charged with this unit must be equipped with a built-in Battery Management System (BMS).
Ideal Applications
Cars & Trucks Motorcycles & ATVs Boats & Personal Watercraft Lawn Mowers & Tractors Solar Deep-Cycle Storage
