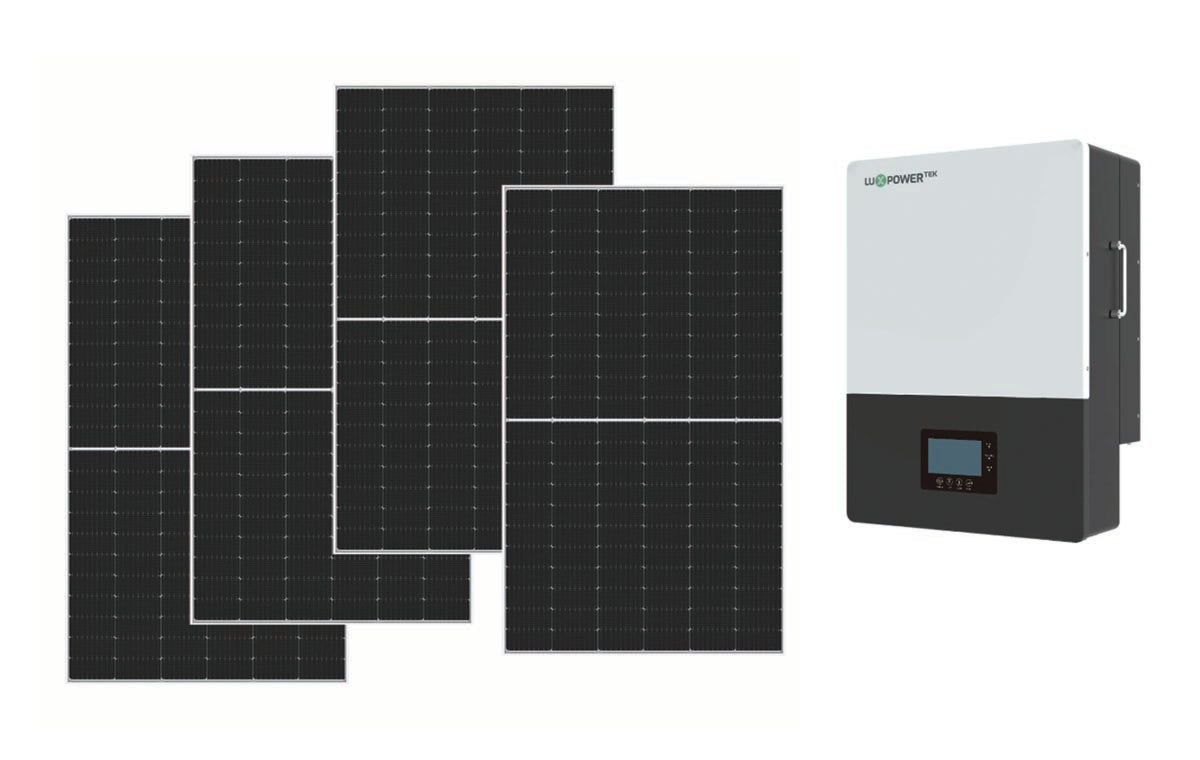

11.34kW Ultimate Energy Independence Kit - Luxpower 12k & 21x Longi 540W Bifacial Array

The 11.34kW Luxpower Hybrid Kit is a top-tier residential power plant designed for owners who refuse to compromise on energy security. By pairing the industry-leading Luxpower LXP-LB-US 12k Hybrid Inverter with a massive 21-panel bifacial array, this system provides enough throughput to power entire households, including heavy 240V loads like central HVAC, EV chargers, and electric water heaters.

This kit features 21 high-efficiency Longi 540W Bifacial Solar Panels. These modules are designed to capture sunlight from both sides, increasing your total energy yield by up to 25%—a game changer for ground-mounted systems or light-colored roofs. To ensure peak performance, we provide three pairs of 50ft #10 MC4 solar cables. This allows you to take full advantage of the Luxpower's triple MPPT architecture, running three independent strings directly to the inverter for optimized production even with complex shading or varied roof angles.

Complete Power Station Components:

• 21x Longi 540W Bifacial Panels: Dual-glass, commercial-grade modules with 21.1% efficiency and superior low-light performance.
• Luxpower 12k Hybrid Inverter: 12,000W output powerhouse with an 18,000W PV input limit, allowing for even further future expansion.
• 3 Pairs of 50ft #10 MC4 Cables: Premium 10AWG thickness to minimize voltage drop across long runs (150ft total cable included).
• Whole Home 200A Passthrough: The integrated 200A load breaker allows this system to back up your entire main panel without a sub-panel.
• Triple MPPT Tracking: Perfectly balanced for 3 strings of 7 panels, maximizing harvest across different sun angles.
• Smart Load & Generator Support: Dedicated ports for smart load management or seamless auto-start generator integration.

Technical Specifications:

Technical Tip: With 21 panels, we recommend a "3-String of 7" configuration to perfectly utilize the Luxpower's 3 MPPT inputs. This ensures each MPPT stays well within the 100V-600V operating range for maximum conversion efficiency.
