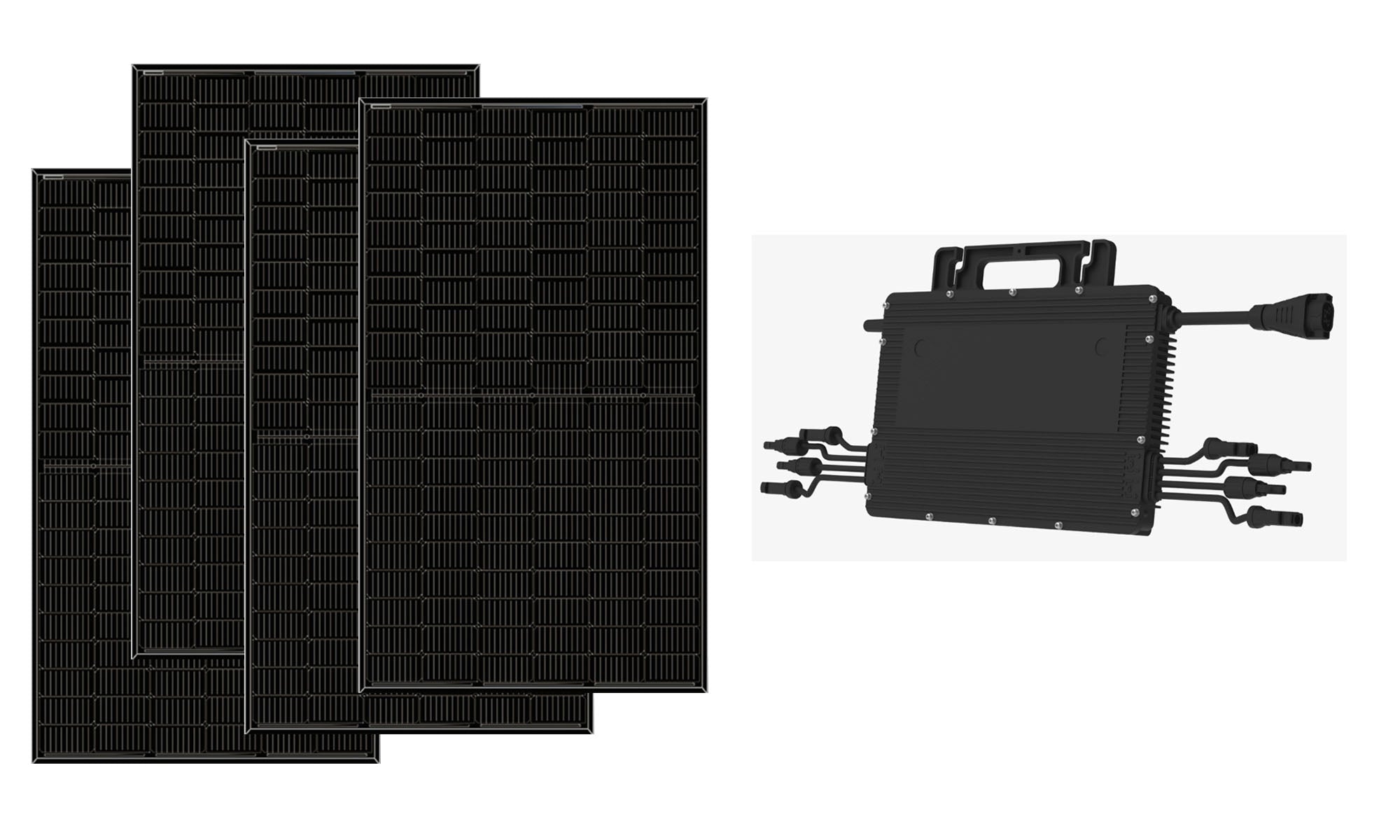

10kW Professional Grid-Tied Solar System - Hoymiles Microinverters & Thornova Bifacial Technology

The 10kW Hoymiles Microinverter Kit is the ultimate "set and forget" solution for full-scale residential solar production. Designed specifically for net-metering applications, this system generates enough power to offset the electricity bills of a standard modern home. By utilizing module-level power electronics (MLPE), this kit ensures that shade from trees, vent pipes, or chimneys never compromises your total energy harvest.

This system features 20x Thornova 500W Bifacial N-Type panels. These premium modules capture light from both sides, offering a significant production boost in winter or on light-colored rooftops. Each group of four panels is managed by a Hoymiles HMS-2000-4T microinverter, providing 20 independent MPPT trackers across the entire array for unparalleled efficiency and system monitoring.

Premium High-Capacity Components:

• 20x JA Solar 500W Bifacial Panels: High-efficiency N-Type technology with 30-year performance guarantee and superior dual-sided energy capture.
• 5x Hoymiles HMS-2000-4T Microinverters: Industrial-grade "4-in-1" microinverters that provide the highest power density in their class.
• Hoymiles DTU-Pro-S Gateway: Advanced monitoring hub using Sub-1G wireless for 24/7 panel-level reporting via the S-Miles Cloud app.
• AC Bus Trunk Package: Includes 5x Hoymiles trunk cables and a branch end cap for a code-compliant, streamlined installation.
• Maximum Reliability: No single point of failure—if one microinverter or panel has an issue, the rest of the 10kW system continues at full power.
• Safety & Compliance: Integrated Rapid Shutdown (NEC/CEC) and UL 1741 SB certification for legal grid interconnection.

Technical Specifications:

Technical Tip: For a 10kW array, we recommend splitting the 5 microinverters across two 20A or 30A branch circuits to comply with the 80% continuous load rule of the CEC/NEC.
