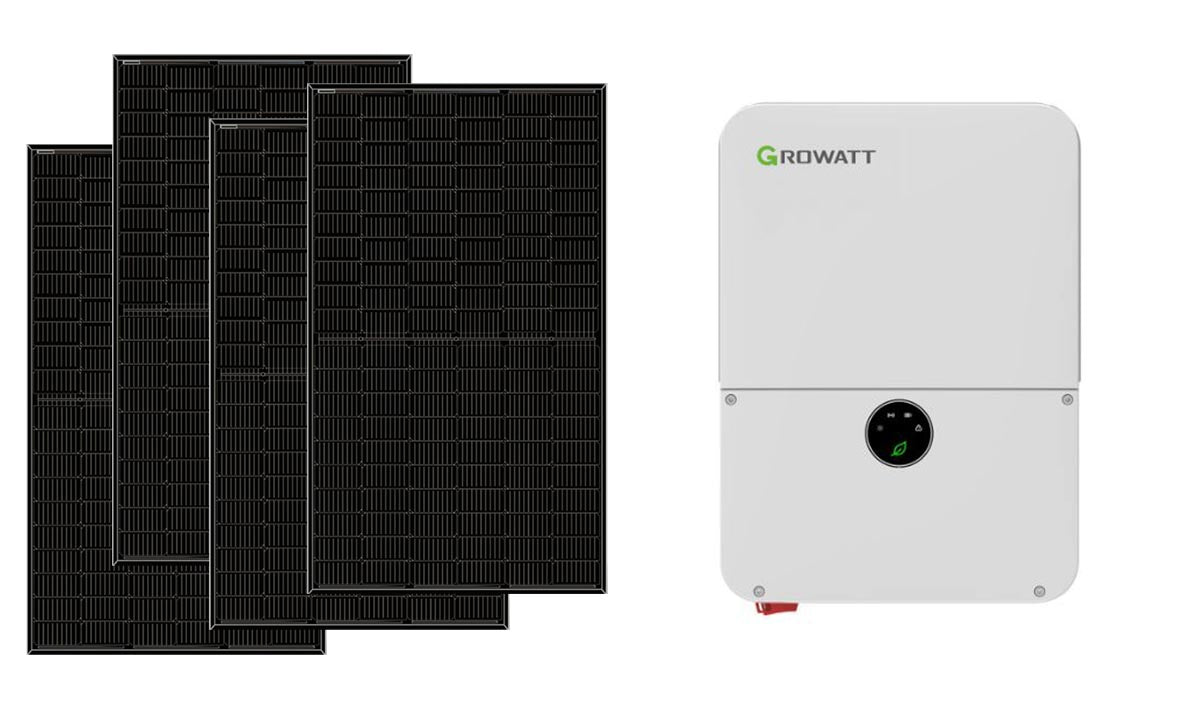

10kW Growatt Hybrid "Battery-Ready" Solar System - 9.9kW Renesola Array

The 10kW Growatt Hybrid System is engineered for homeowners who want the best of both worlds: high-efficiency grid-tied production today and a seamless path to energy independence tomorrow. Featuring the Growatt MIN 10000TL-XH-US, this "Battery-Ready" inverter is designed to work as a standard grid-tie unit but includes the internal hardware to support Growatt ARO or APX lithium batteries whenever you are ready to add storage.

This comprehensive kit includes 22x Renesola 450W Monocrystalline panels, creating a massive 9.9kW DC array. To ensure your system meets Canadian and US rooftop safety standards, we include 22x APSmart RSD-S-PLC units and a dedicated APSmart transmitter. This setup provides module-level rapid shutdown, allowing your system to be safely deactivated in seconds during an emergency or utility outage.

System Components & Key Features:

• 22x Renesola 450W Solar Panels: High-efficiency Tier 1 modules with half-cut cell technology for superior shading performance and durability.
• Growatt MIN 10000TL-XH-US Inverter: A lightweight, high-efficiency hybrid inverter featuring a 98.5% peak efficiency and silent natural convection cooling.
• Full Rapid Shutdown Package: Includes 22x APSmart RSD-S-PLC units and an APSmart transmitter for native code compliance (NEC/CEC).
• 3 Pairs of 50ft #10 MC4 Cables: 150 total feet of UV-rated 10AWG solar wire for professional, low-loss DC connections.
• Multi-Mode Operation: Supports Self-Consumption, Zero Export, Time-of-Use (ToU), and Off-Grid modes (when paired with a battery/ATS).
• Smart Monitoring: Built-in support for WiFi, 4G, or Bluetooth monitoring via the Growatt ShineServer and ShinePhone apps.

Technical Specifications:

Technical Note: The MIN-XH series is designed for 400V high-voltage battery systems. If you plan to add backup power later, this inverter is compatible with Growatt’s modular battery stacks, allowing you to scale from 10kWh to 30kWh of storage easily.
