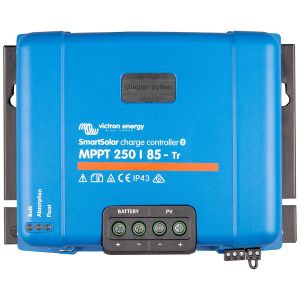

xVictron SmartSolar MPPT 250/85-Tr VE.Can: Ultra-High Voltage 85A Solar Controller (SCC125085411)
The Victron Energy SmartSolar MPPT 250/85-Tr VE.Can (SCC125085411) is an industrial-grade charge controller designed for large PV arrays and high-voltage strings. With a 250V maximum PV input and 85A continuous output, it can manage up to 4900W of solar power on 48V systems. This professional version features VE.Can networking, enabling perfectly synchronized charging for large multi-controller battery banks.
Technical Specifications & Documentation
Click here to open the SmartSolar 250/85-Tr VE.Can Spec Sheet in a new windowUltra-High Voltage & Intelligent Networking
- 250V PV Input: Allows for long series strings, significantly reducing the cost of DC wiring and combiner boxes.
- VE.Can Communication: Purpose-built for systems with multiple charge controllers. Daisy-chain up to 25 units via RJ45 cables for unified, synchronized charging.
- Integrated Bluetooth Smart: Real-time monitoring, 30-day historical logging, and configuration via the VictronConnect app—no dongle required.
- Ultra-Fast MPPT Tracking: Especially during overcast skies, this technology improves energy harvest by up to 30% compared to PWM controllers.
- Tr Version (Screw Terminals): Rugged screw terminal design accommodates cables up to 35 mm² (AWG2) for secure, high-current connections.
Maximum Recommended PV Power
The SmartSolar 250/85-Tr VE.Can is optimized for high-capacity battery systems:
| 12V Battery System | 1200 Watts |
| 24V Battery System | 2400 Watts |
| 36V Battery System | 3600 Watts |
| 48V Battery System | 4900 Watts |
Electrical Specifications
| Rated Charge Current | 85 Amps |
| Max. PV Open Circuit Voltage | 250 Volts (Absolute Maximum) |
| Peak Efficiency | 99% (Industry Leading) |
| Connectivity | VE.Can, VE.Direct, and Bluetooth Smart |
| Part Number | SCC125085411 |
| Warranty | 5 Years Limited |
