Description

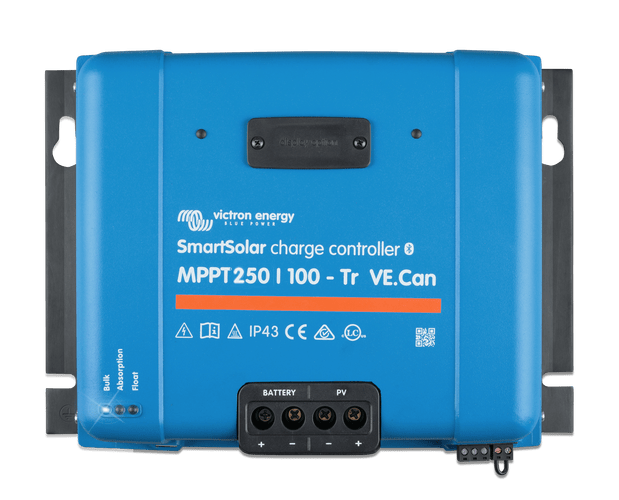

xVictron SmartSolar MPPT 250/100-Tr VE.Can: 100A Ultra-High Voltage Controller (SCC125110412)
The Victron Energy SmartSolar MPPT 250/100-Tr VE.Can (SCC125110412) is the premium solution for high-voltage, large-scale solar arrays. Engineered for professional power systems, it features a massive 250V maximum PV input and 100A continuous output, managing up to 5800W of solar on 48V banks. This specialized model includes VE.Can networking, allowing for high-speed synchronization of up to 25 units in a single system.
Technical Specifications & Documentation
Click here to open the SmartSolar 250/100-Tr VE.Can Spec SheetAdvanced Harvesting & System Connectivity
- VE.Can Interface: The industrial standard for multi-controller coordination. Daisy-chain units via RJ45 to ensure perfectly synchronized charging across the entire battery bank.
- Bluetooth Smart Built-in: Wireless setup, monitoring, and 30-day historical logging via the VictronConnect app—no dongle required.
- Ultra-High Efficiency: Features a peak efficiency of 99%, ensuring minimal heat generation and maximum energy harvesting from your PV array.
- Advanced Maximum Power Point Detection: Lock onto the absolute optimum MPP even during partial shading, preventing energy loss to local power points.
- Tr (Screw Terminals): Robust screw terminal design accommodates cables up to 35 mm² (AWG2) for secure, high-current installations.
Maximum Recommended PV Power
| 12V Battery System | 1450 Watts |
| 24V Battery System | 2900 Watts |
| 36V Battery System | 4350 Watts |
| 48V Battery System | 5800 Watts |
Electrical Specifications
| Rated Charge Current | 100 Amps |
| Max. PV Open Circuit Voltage | 250 Volts (Absolute Maximum) |
| Peak Efficiency | 99% |
| Model Number | SCC125110412 |
| Connectivity | VE.Can, VE.Direct, and Bluetooth |
| Warranty | 5 Years Limited |
