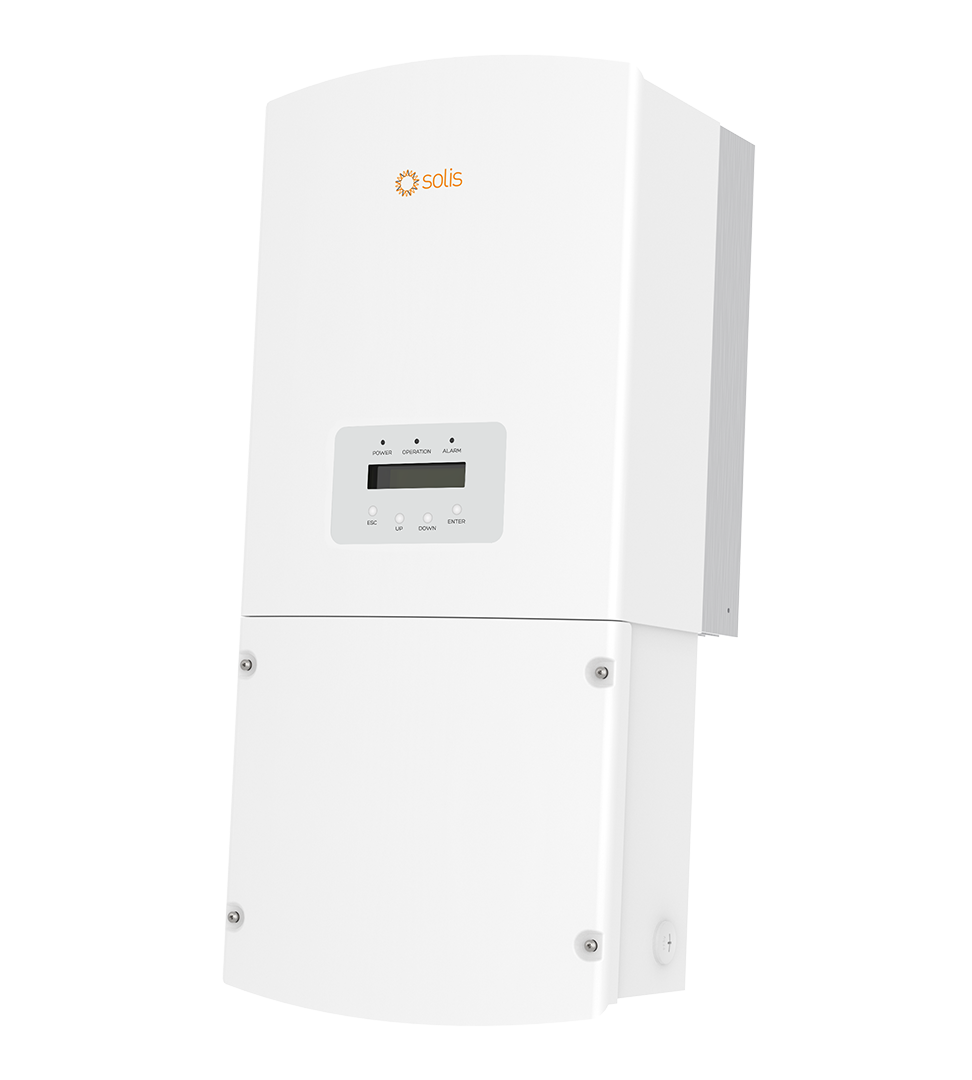

Solis-1P7.6K-4G-US-APST 7.6kW Grid Tied Inverter

Solis 7.6KW US plus version single phase string inverters have up to 4 MPPTs which are perfect for residential rooftop systems with different roof orientations. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.

Features:
  • String current up to 14A
  • Support module level monitoring
  • Industry-leading 3 and 4 MPPT designs
  • Max. efficiency 97.8% (CEC efficiency 97.5%)
  • CA Rule 21 compliant and UL 1741 SB Certified
  • Sunspec protocol with option cellular and WiFi
  • Integrated module level rapid shutdown transmitter
  • AFCI protection, proactively reduces fire risk
  • 10 years standard warranty with extension options
  • Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
Technical Specifications:

Input DC

 Max. input voltage 600 V Rated voltage 330 V
Start-up voltage 120 V MPPT voltage range 100 - 500 V
Max. input current 14 A / 14 A / 14 A Max. short circuit current 22 A / 22 A / 22 A
MPPT number 3 Max. input strings number 3

Output AC

 Rated output power 7.6 kW Max. apparent output power 7.6 kVA
Max. output power 7.6 kW Rated grid voltage 1?/PE, 240 V / 208 V
Rated grid frequency 60 Hz Max. output current for 240V grid 31.7 A
Max. output current for 208V grid 36.5 A Power Factor >0.99 (0.8 leading - 0.8 lagging)
THDi <3%

Efficiency

 Max. efficiency 97.8% CEC efficiency 97.5%

Protection

 DC reverse-polarity protection Yes

General Data

 Dimensions (W*H*D) 13.1*28.8*9.8 in (333*732*249 mm) Weight 45.2 lbs (20.5 kgs)
Topology Transformerless Self-consumption (night) <1W
Relative humidity 0-100% Operating ambient temperature range -13°F to 140°F (-25°C to 60°C )
Storage environment -13°F to 176°F (-25°C to 80°C) Ingress protection TYPE 4X
Cooling concept Natural convection Max. operation altitude 13120ft (4000 m)
Compliance UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1

Features

 DC connection 2 knockout for 1"conduit at bottom, 4 knockout for3/4"conduit at side and back, Screw clamp terminal AC connection
