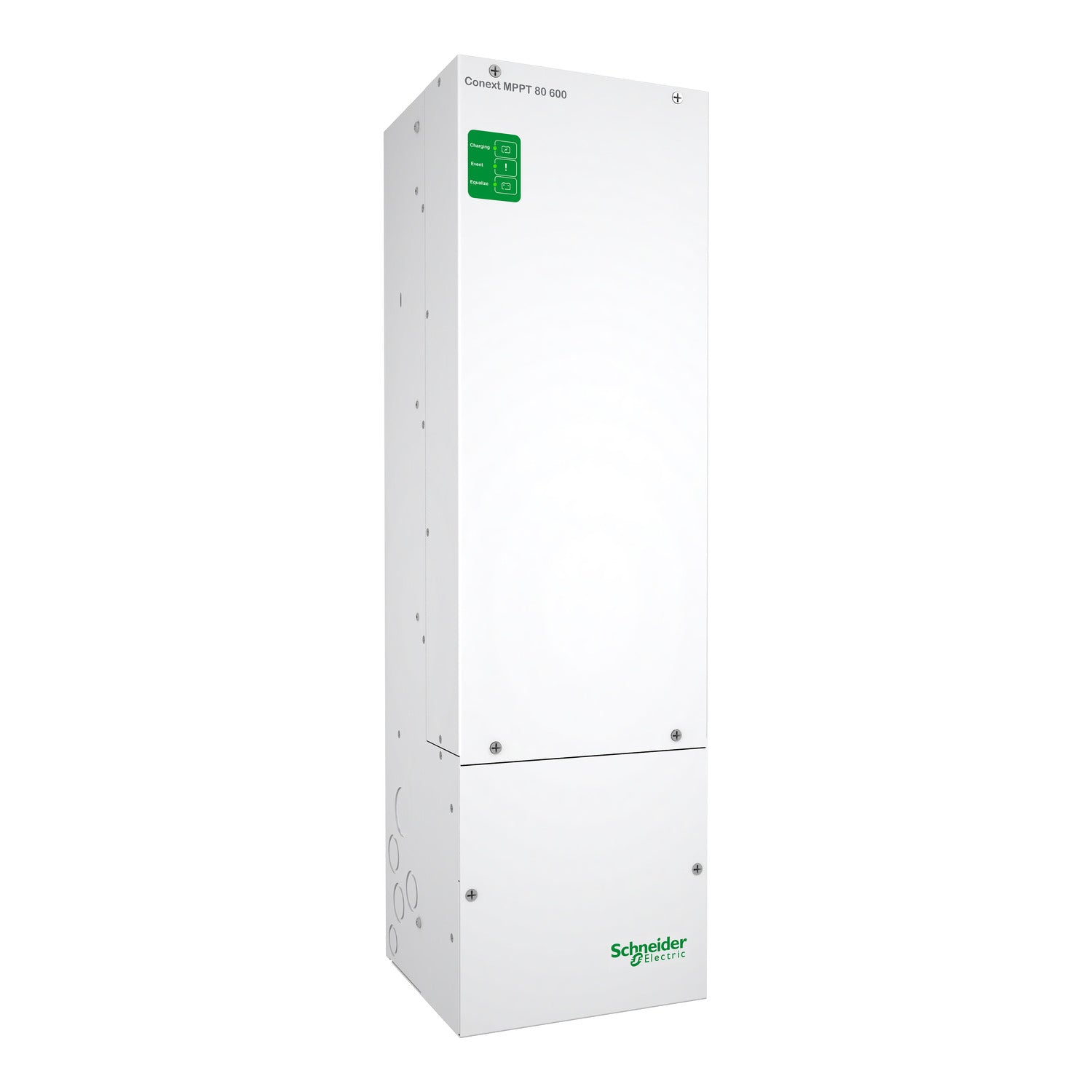

xSchneider Electric Conext™ MPPT 80 600: High-Voltage 80A Solar Controller
The Schneider Electric Conext™ MPPT 80 600 (865-1032) is a professional-grade high-voltage solar charge controller. Capable of handling a massive 600 VDC input, it delivers up to 80 Amps of charging current for 24V or 48V battery systems. By supporting high-voltage PV strings, this controller eliminates the need for multiple combiner boxes and heavy-gauge wiring, significantly lowering total system costs.
Technical Documentation
Click here to open the Schneider MPPT 80 600 Spec Sheet in a new windowAdvanced Efficiency & Reliability
- 600 VDC Input: Allows for simplified array design and significantly longer PV strings.
- Full Power Output: Delivers 80A continuous output in ambient temperatures up to 45°C (113°F).
- Superior MPPT Tracking: Enhanced algorithm ensures maximum energy harvest even in partial shade or changing weather.
- Xanbus™ Enabled: Full integration with Conext XW Pro, SW, and InsightHome/Facility for remote management.
- Integrated Safety: Built-in Ground Fault (GFP) and Arc Fault Protection for NEC compliance and system safety.
- Passive Cooling: Highly reliable heat-sink design with no internal fans to fail in harsh environments.
Electrical Specifications
| Maximum Charge Current | 80 Amps |
| Maximum PV Input Voltage | 600 VDC (Operating) |
| Nominal Battery Voltages | 24 and 48 VDC |
| Max. Recommended PV Power | 4,800 Watts (at 48V Nominal) |
| Peak Efficiency | 95% |
| Protection Rating | IP20 / NEMA Type 1 |
Mechanical Data
| Dimensions (H x W x D) | 30 x 8.6 x 8.6 in (76 x 22 x 22 cm) |
| Weight | 13.5 kg (29.8 lbs) |
| Certifications | CSA Certified (UL1741, CSA 107.1) |
| Warranty | 3 Years (Standard) |
