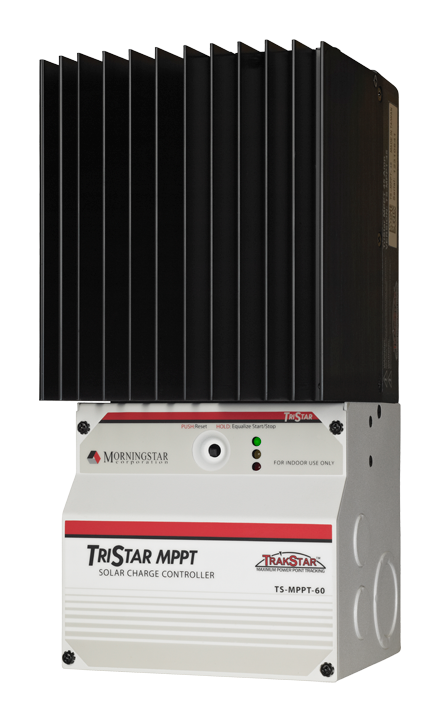

Morningstar TriStar TS-MPPT-60: High-Capacity 60A Solar Charge Controller

The Morningstar TriStar MPPT-60 (TS-MPPT-60) is a top-tier 60-amp charge controller engineered for high-performance off-grid PV systems. Featuring TrakStar™ Technology, it provides industry-leading 99.1% peak efficiency. This controller is designed for 12V, 24V, and 48V battery systems and supports large solar arrays with up to 150V open circuit voltage. It is the gold standard for remote telecommunications, oil & gas, and professional residential solar.

Maximum Harvest & Mission-Critical Reliability

• TrakStar MPPT Technology: Extremely fast sweeping of the entire I-V curve to find and stay on the maximum power point, even during rapid cloud cover changes.
• 150V Maximum PV Input: Allows for long series strings, reducing wiring complexity, voltage drop, and installation costs.
• Advanced Networking: Built-in Ethernet for web-based monitoring and data logging, plus EIA-485 and RS-232 for full industrial system integration.
• Internal Data Logging: Memory storage for up to 200 days of detailed performance variables to help analyze system health.
• Robust Fanless Design: High-efficiency electronics and massive die-cast aluminum heat sinks eliminate the need for cooling fans, removing a common mechanical failure point.

Maximum Recommended PV Input Power

The TS-MPPT-60 is built to handle high-wattage arrays for professional energy storage:

Electrical Specifications
