Description

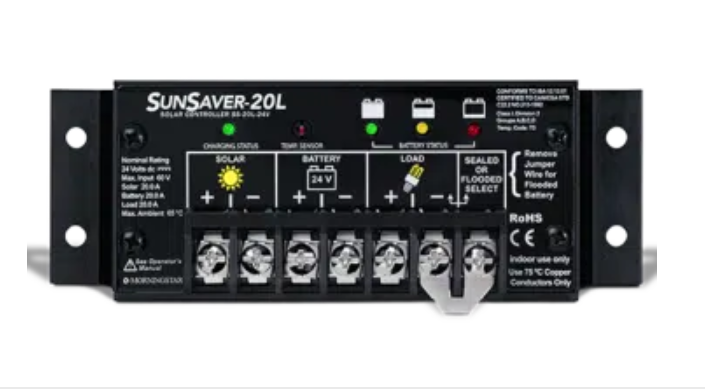

xSince the introduction in 1996, more than 1.5 million SunSaver Controllers have set the standard for reliability and performance in demanding oilfield and mining installations in nearly 90 countries around the globe. Today, SunSaver is the world’s leading small solar controller for industrial and consumer markets, proven in missioncritical applications where failure is simply not an option.
This third generation SunSaver brings over two decades of advances in software and electronics to the same rugged, hardened design that made the original famous. Own both a legend and the latest in a single product.
Only SS-6L/10L/20L models provide load control
KEY FEATURES AND BENEFITS
Extremely High Reliability
• Failure rate of less than 1 per 1,000 shipped (<0.1%)
• 100% solid state. Power MOSFET design
• Manufactured in an ISO 9001 factory
• 100% pre-shipment functional testing
Longer Battery Life
• Series design (not shunt) for cool operation
• Longer battery life through PWM 4-stage charging and
temperature compensation
• Sealed or flooded battery select
• Low voltage load disconnect on several versions
Designed for Harsh Environments and Hazardous Locations
Around the Globe
• Temperature rating of -40°C to +60°C
• Ideal for Oil/Gas applications. Approved for use in hazardous
locations: UL/CSA Class 1, Division 2, Groups A-D; ATEX/IECEx
Zone 2, Gas Group IIC
• Tropicalization—hardened for field use with anodized aluminum
enclosure, epoxy encapsulation and marine-rated terminals
Easy to Install and Use
• Factory pre-sets result in no required install settings
• Electronic protections prevent damage from wiring mistakes
• Fully automatic operation and fault recovery
• Additional features include full electronic protections, 3-state
battery LED indicators, terminal cover, dead battery recovery,
high voltage load protection for sensitive loads
• Wire terminal cover included with every SunSaver
|
Electrical |
|
|
System voltage |
24V |
|
Min. battery voltage |
6V |
|
Max. solar voltage |
60V |
|
Max. solar current |
10A |
|
Max. load current |
10A |
|
Regulation voltage |
24 volt |
|
Sealed battery |
28.2 V |
|
Flooded battery |
29.2 V |
|
Load disconnect |
23.0 V |
|
LVD reconnect |
25.2 V |
|
Voltage accuracy |
24V: +/– 48 mV (typical) |
|
Mechanical |
|
|
Wire size |
5 mm2 / #10 AWG |
|
Weight (unpacked) |
0.23kg / 8 oz. |
|
Dimensions |
15.2 x 5.5 x 3.2 cm 6.0 x 2.2 x 1.3 inch |
|
Environmental |
|
|
Ambient temperature |
-40°C to +60°C |
|
Storage temperature |
-55°C to +80°C |
|
Humidity |
100% non-condensing |
|
Tropicalization |
Epoxy encapsulation Marine rated terminals Anodized aluminum case |
Battery Charging
• Charging method 4 stage series PWM
• Charging stages Bulk, absorption, float, equalize
• Temperature compensation
» Coefficient 12V: -30mV/°C
24V: -60mV/°C
» Range -30°C to +60°C
» Set points Absorption, float, equalize
LED Indications
• Status LED (1) Charging or not charging
Solar error conditions
• Battery LED’s (3) Battery level
Charging stage
Certifications
• Hazardous Locations:
» UL121201/CSA C22.2 #213
Class I, Div. 2 Groups A-D T5
» ATEX II 3G Ex ec IIC T4...T5 Gc
» IECEx Ex ec IIC T4...T5 Gc
• CE, RoHS and REACH Compliant
• IEC/EN 62109-1 Ed.1 2010
• UL 1604/ANSI/ISA 12.12.01-2000 (USA) and CSA C22.2
No. 213-M1987 (Reaffirmed 2004) (CANADA) Listed
• ETL Listed: UL 1741 (terminal cover required for compliance)
• FCC Title 47 (CFR), Part 15 Subpart B for Class B Device
• Manufactured in a Certified ISO 9001 Facility
