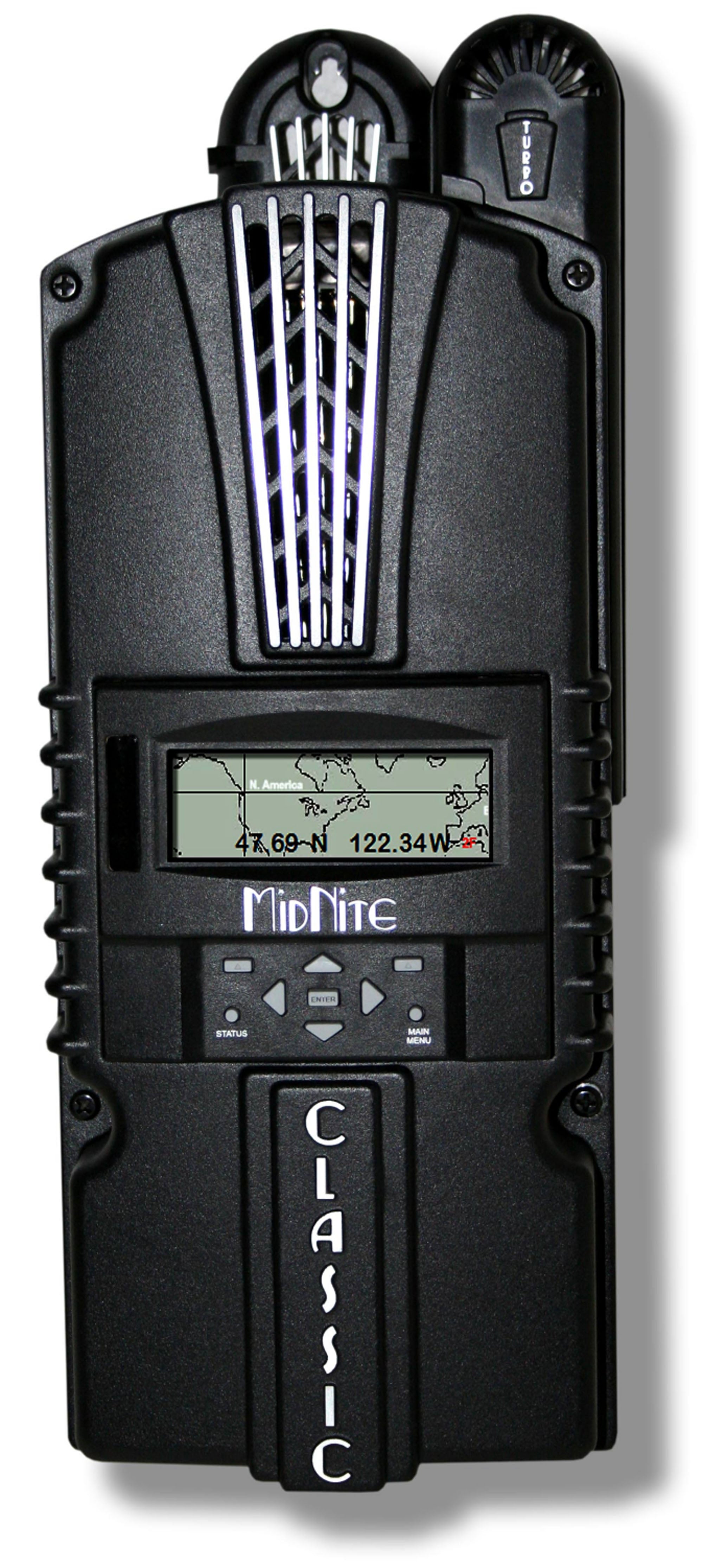

xMidNite Solar Classic 200: High-Voltage Precision MPPT Controller
The MidNite Solar Classic 200 is the go-to solution for high-voltage off-grid power systems. Offering a maximum operating voltage of 200V, it allows installers to design longer solar strings, significantly reducing cable costs and energy drop-off over distance. Capable of 79A continuous output, the Classic 200 features MidNite's legendary Arc Fault Protection and HyperView graphics, making it one of the safest and most data-rich controllers available today.
Technical Specifications & Documentation
Click here to open the MidNite Solar Classic 200 Spec SheetAdvanced Harvesting & Protection
- 200V Operating Voltage: Higher voltage threshold enables the use of more modules in series, streamlining installation and increasing overall system efficiency.
- HyperVOC Technology: Provides an extra safety margin for cold weather climates, preventing controller damage during high-voltage "spike" conditions.
- Solar, Wind & Hydro Modes: Unlike standard controllers, the Classic 200 has built-in tracking algorithms for wind turbines and hydro plants.
- Arc Fault Protection: Integrated Type 1 electronic arc fault detection ensures your off-grid home or cabin is protected from PV-related fire hazards.
- Remote Monitoring: Built-in Ethernet allows for local and web-based monitoring via the MyMidNite portal.
Maximum Output Current (at 25°C)
| 12V Battery System | 79 Amps |
| 24V Battery System | 78 Amps |
| 48V Battery System | 78 Amps |
| 72V Battery System | 65 Amps |
Technical Specifications
| Operating Voltage | 200 Volts |
| Max. PV Open Circuit Voltage | 200V + HyperVOC |
| Charge Stages | Bulk, Absorb, Float, Equalize |
| Connectivity | Ethernet, RS232, USB |
| Warranty | 5 Years (American Made) |
