Description

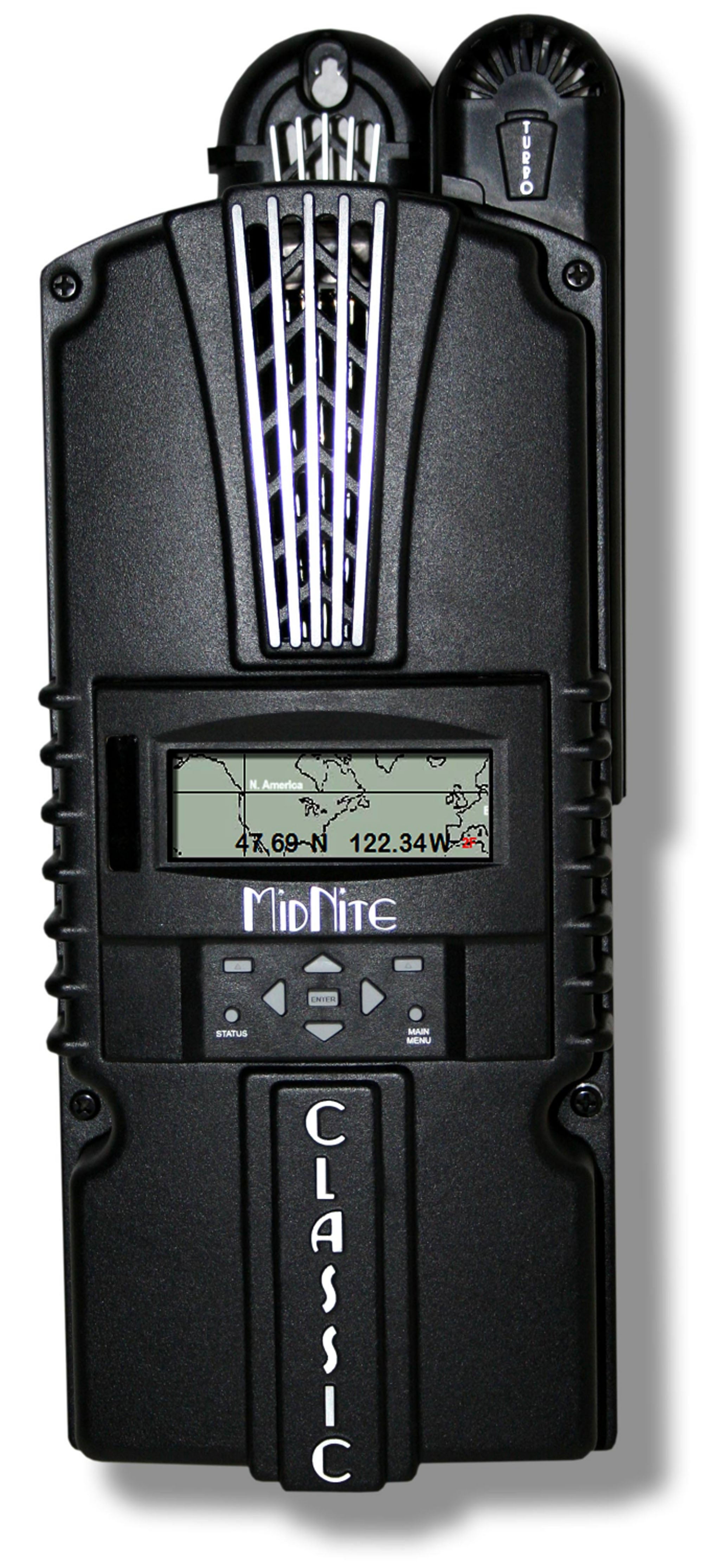

xMidNite Solar Classic 150: The Most Versatile MPPT Controller
The MidNite Solar Classic 150 is a high-performance MPPT charge controller that has redefined off-grid power reliability. With a 150V operating voltage and a massive 96A output current, the Classic 150 is unique in its ability to support Solar, Wind, and Hydro power systems. Featuring industry-first Arc Fault Protection and HyperView graphics, this controller offers a level of safety and data visualization that remains unmatched in the industry.
Technical Specifications & Documentation
Click here to open the MidNite Solar Classic Spec SheetExclusive Performance Features
- HyperView Display: A large, backlit graphics display that shows real-time performance data and historical logs for the last 380 days.
- Arc Fault Protection: Built-in detection (Type 1) helps prevent house fires by identifying and mitigating dangerous electrical arcs in your PV array.
- Broad Battery Compatibility: Supports 12V through 72V battery banks with fully customizable charging stages for Lead Acid, AGM, and Lithium chemistries.
- Internet Ready: Features an integrated Ethernet port for remote monitoring via the MyMidNite local network or web-based portal.
- Multiple Modes: Includes specialized tracking modes for Solar MPPT, Wind (with user-defined power curves), and Hydro.
Maximum Output Current (at 25°C)
| 12V Battery System | 96 Amps |
| 24V Battery System | 94 Amps |
| 48V Battery System | 86 Amps |
| 72V Battery System | TBD (Custom Adjustable) |
Technical Specifications
| Operating Voltage | 150 Volts |
| Max. PV Open Circuit Voltage | 150V + HyperVOC (Cold Weather) |
| Communication | Ethernet, RS232, and USB |
| Environmental Rating | Indoor (Type 1) |
| Warranty | 5 Years (Made in the USA) |
