Description

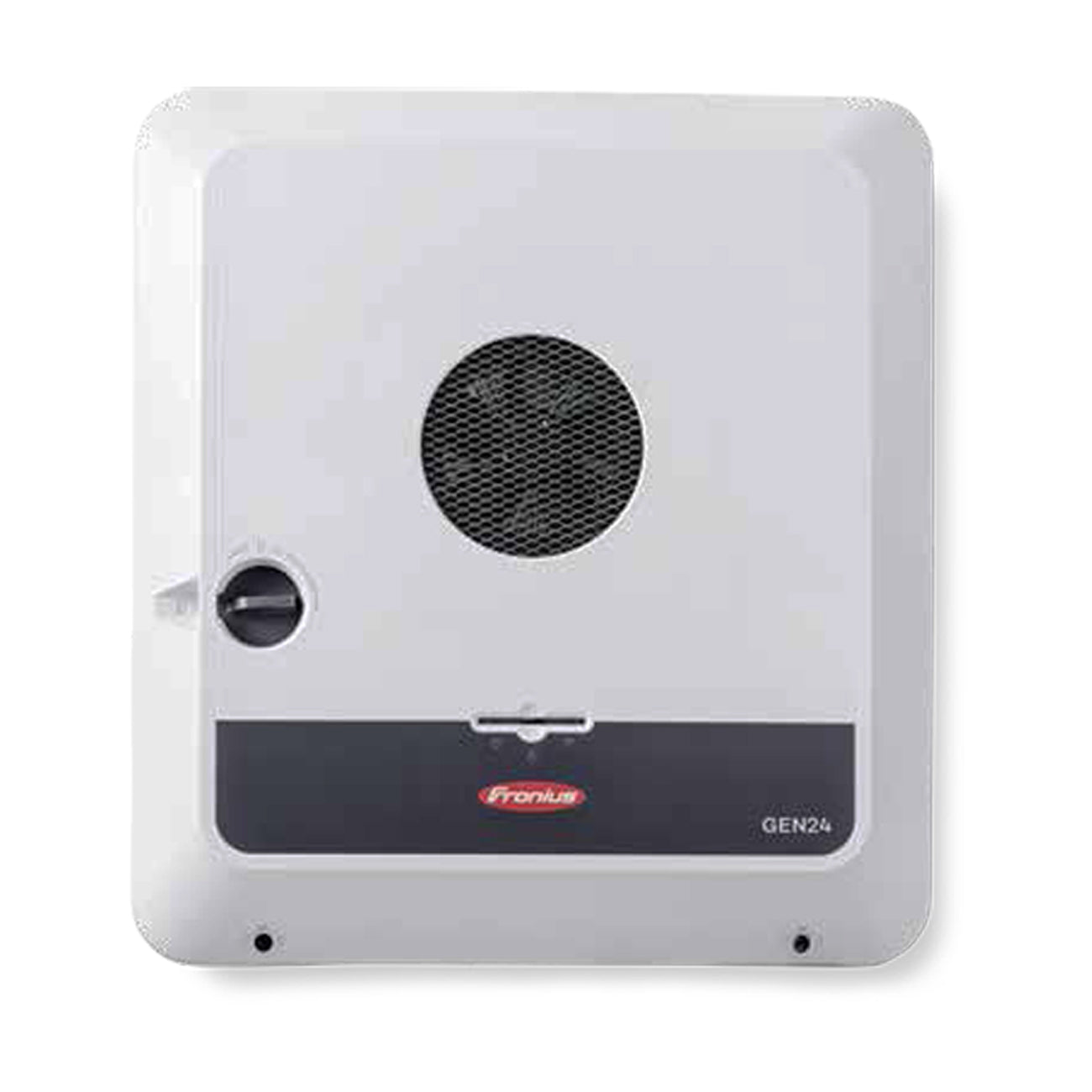

xWith the Fronius GEN24 as the heart of your PV system, you gain the flexibility to directly use your self-produced solar energy, even during power outages. This European string inverter impresses with state-of-the-art technology and smart solutions that save both time and money.
With the built-in basic backup power function PV Point, the most critical loads in the household can be supplied via a socket in the event of a power failure. Even in shading conditions, the Fronius GEN24 maintains efficient energy generation thanks to integrated software. Less effort for greater yield - that's Fronius GEN24. Designed to empower.
Flexibility for greater potential: The SuperFlex Design ensures easy configuration even on complex roofs.
Built-in longevity: Active Cooling Technology keeps the power electronics of the inverter at a low temperature, ensuring a long service life.
Made in Austria
|
|
Primo GEN24 7.7 |
Primo GEN24 10.0 |
|
Input Data |
|
|
|
Number of MPP Trackers |
2 |
2 |
|
DC Input Voltage Range (Udc min -
Udc max) |
65 - 600 V |
65 - 600 V |
|
Nominal Input Voltage (Udc,r) |
385V (240V) 365V (208V) |
385V (240V) 365V (208V) |
|
Feed-in Start Voltage (Udc start) |
80 V |
80 V |
|
Usable MPP Voltage Range |
65–480 V |
65–480 V |
|
MPP Voltage Range (at Rated Power) |
260–480 V |
260–480 V |
|
Max Usable Input Current (Idc max) |
MPPT1: 22 A |
MPPT1: 22 A |
|
|
MPPT2: 22 A |
MPPT2: 22 A |
|
Max Short Circuit Current per MPPT
(Isc pv) |
MPPT1: 41.25 A |
MPPT1: 41.25 A |
|
|
MPPT2: 36 A |
MPPT2: 36 A |
|
Number of DC Connections |
2 |
2 |
|
Max Usable DC Power |
8000 W |
10,250 W |
|
Max PV Generator Output |
11,520 Wpeak |
15,000 Wpeak |
|
Output Data |
|
|
|
AC Rated Power (Pac,r) |
7,680 W |
10,000 W |
<
