x5.4kW Professional Grid-Tied Solar Kit - Solis 5kW Inverter & Renesola 450W Array
The 5.4kW Solis Grid-Tied Kit is a high-reliability energy solution designed for residential net-metering. This system balances the cost-effectiveness of a string inverter with the advanced safety of module-level Rapid Shutdown (RSD). Featuring the Solis 1P-5K-4G-US-PLUS-APST, this kit is specifically engineered to work seamlessly with the included APSmart RSD units, ensuring your rooftop installation meets the most stringent modern electrical codes (NEC 2017/2020/2023).

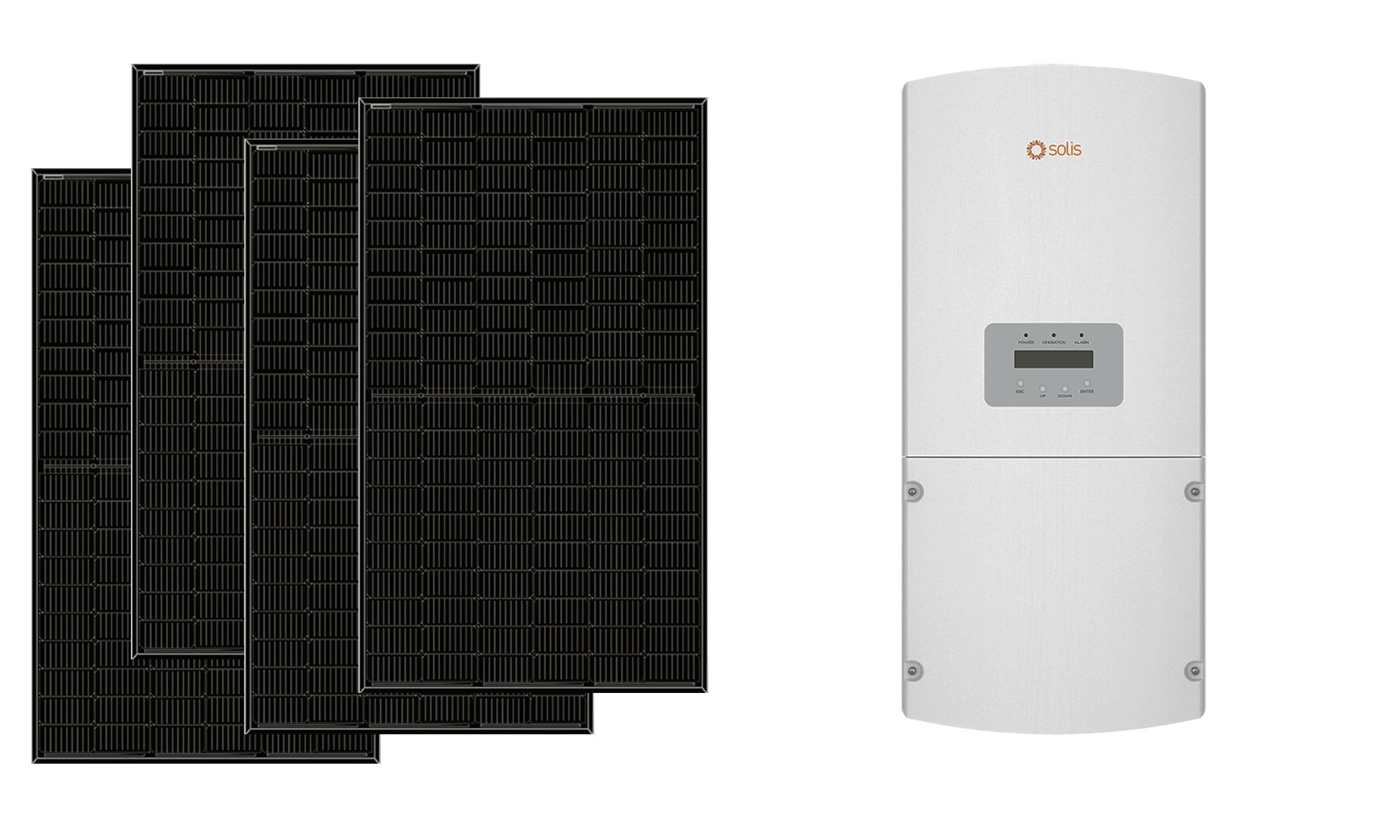

This kit includes 12x Renesola 450W Monocrystalline panels, providing a powerful 5.4kW DC array. To ensure a safe and streamlined installation, we provide 12x APSmart RSD-S-PLC units and two pairs of 40ft #10 MC4 solar cables. The PLC (Power Line Communication) technology allows the Solis inverter to communicate directly with the RSDs over your existing DC wires—no extra control wiring required.
Summary: 5,400W Total Solar Capacity | 5,000W Continuous AC Output | Integrated APSmart Rapid Shutdown (RSD) | PLC Communication | UL 1741 SB Compliant | High-Efficiency 450W Renesola Modules.
Kit Components & System Highlights:
- 12x Renesola 450W Monocrystalline Panels: Tier 1 high-efficiency modules with superior low-light performance and durable half-cut cell architecture.
- Solis 5kW 4G Inverter (1P-5K-4G-US-PLUS-APST): Features dual MPPT trackers and a built-in APSmart transmitter for native rapid shutdown control.
- 12x APSmart RSD-S-PLC Units: Module-level rapid shutdown devices that ensure rooftop DC voltage drops to safe levels in seconds during a grid outage or emergency.
- 2 Pairs of 40ft #10 MC4 Cables: Heavy-duty, UV-rated 10AWG copper cabling for high-efficiency power transmission from array to inverter.
- Dual MPPT Design: Allows you to split the 12 panels into two strings (e.g., East and West) to maximize production on complex roofs.
- NEMA 4X Rated: The Solis inverter is fully outdoor-rated with a sleek, fanless convection cooling design for silent operation.
Technical Specifications:
| Total Array Power | 5,400 Watts |
| Inverter Continuous Output | 5,000W (240V Grid-Tied) |
| Safety Standard | Integrated Rapid Shutdown (SunSpec/PLC) |
| Wiring Package | 2x 40ft 10AWG MC4 Cable Sets |
| Max Efficiency | 97.8% CEC Efficiency |
| Compliance | UL 1741 SB, Rule 21, HECO, IEEE 1547 |
Technical Note: The APST designation on this Solis inverter indicates it is pre-configured with the APSmart transmitter. No external RSD initiator is required, simplifying your balance-of-system (BOS) costs.
